12" w 28" l blohm hanseat 7 surface grinder, auto idf,

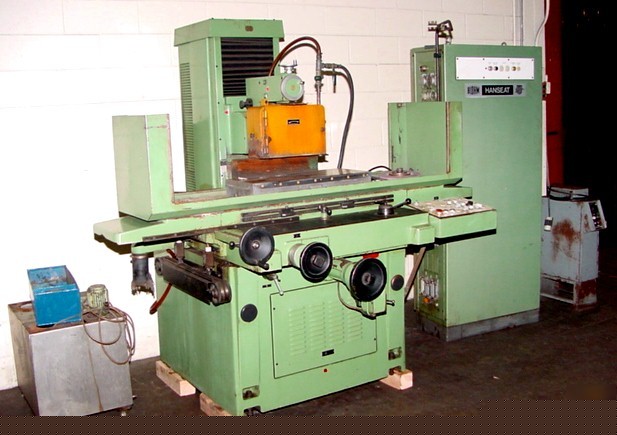

12" W 28" L Blohm HANSEAT 7 SURFACE GRINDER, AUTO IDF,
12" Width 28" Length Blohm HANSEAT 7 SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS, 12" WHEEL, DRESSER, E
12" X 28" BLOHM "HIGH-PRECISION" (MADE IN GERMANY)
SURFACE GRINDER W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: HANSEAT 7 S/N: 12079 NEW: 1984
WORKTABLE SIZE.............................. 12" X 28"
MAX. DISTANCE TABLE TO SPINDLE CENTER ............ 23"
WHEEL SIZE ............................. 14" X 2" X 5"
LONGITUDINAL TABLE TRAVEL ........................ 30"
CROSS TRAVEL, AUTOMATIC/MANUAL ............... 13"/14"
VERTICAL TRAVEL ............................. 19- 1/4"
LONGITUDINAL TABLE SPEED .............. 6'6 - 98'6 FPM
AUTO CROSSFEED PER TABLE REVERSAL ........ 0.08" - 2.5"
CROSS HANDWHEEL, GRAD. ........................ 0.001"
AUTO INCREMENTAL DOWNFEED ........... 0.0004" TO .001"
RAPID VERTICAL POWER POSITIONING............... 40 IPM
VERTICAL HANDWHEEL, GRAD. .................... 0.0005"
FINE FEED KNOB, GRADUATED TO ................ 0.00005"
APPROX. MACHINE WEIGHT ..................... 6,000 LBS
POWER RAPID TRAVERSE OF GRINDING WHEELHEAD
11- 3/4" X 27- 1/2" "ULTRA" FINE-DIVISION ELECTROMAGNETIC
CHUCK WITH VARIABLE HOLD NEUTROFIER CONTROL
5.5 HP 3/60/230-460 VOLT DIRECT DRIVE SPINDLE DRIVE MOTOR
