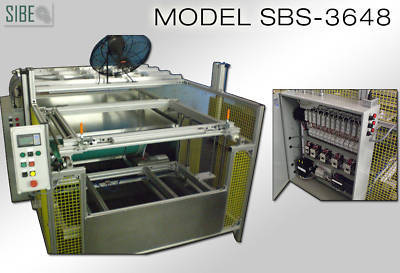

New vacuum forming machine 36" x 48 " thermoforming
GREAT MACHINE FOR PRODUCTION RUNS AS WELL AS PROTOTYPES, PROPS, TRAYS, BLISTERS, RC BODIES, HOUSINGS, ETC
WILL FORM ANY THERMOPLASTIC UP TO 0.250" THICK
MACHINE WILL FORM BOTH FEMALE AND MALE TOOLING
FRAME OF MACHINE IS HEAVY DUTY ALUMINUM EXTRUSION
MAXIMUM FORMING AREA IS 34" X 46"
MAXIMUM SHEET SIZE IS 36" X 48 "
THIS MACHINE HAS THREE MODES OF OPERATION: MANUAL-SET UP-AUTOMATIC
BOTTOM PLATEN HAS A STROKE OF 20 " WITH FULLY ADJUSTABLE SPEED CONTROLS AND LENGTH OF TRAVEL
INFRARED ENERGY EFFICIENT CERAN GLASS HEATERS PANELS, TOP ONLY, WITH A HEAT DENSITY OF 15 WATTS PER SQUARE INCH, PLC PROVIDES SOFT START
10 INDEPENDENTLY CONTROLLED HEATING ZONES , ZONES DRIVEN BY SOLID STATE RELAYS
EACH FUNCTION OF THE MACHINE IS PLC CONTROLLED WITH A FRIENDLY OPERATOR INTERFACE
PLATEN AS WELL AS CLAMPING FRAME ARE MOUNTED ON LINEAR BEARINGS THAT RIDE ON HARDENED SHAFTS
COOLING OF MATERIAL PROVIDED BY 1 4250 CFM FAN
VACUUM SYSTEM CONSISTS OF A 1HP BECKER PUMP, 60 GALLON ACCUMULATING TANK, HIGH FLOW-PILOT OPERATED 1" DIAMETER VACUUM VALVE
INCLUDES OPERATING MANUAL, ELECTRICAL SCHEMATICS,PARTS LIST
WE CAN WIRE THE MACHINE 240 VOLTS SINGLE OR 3 PHASE, OR 480 VOLTS 3 PHASE, PLEASE ADVISE WHEN ORDERING
THIS IS A BUILT TO ORDER MACHINE, BUILD TIME IS 3 -4 WEEKS
EACH ONE OF OUR MACHINES IS COVERED BY A 12 MONTH WARRANTY ON ALL PARTS
WE WILL HELP WITH TRUCKING SOURCING AND WILL LOAD ONTO TRUCK
THIS IS ANOTHER FACTORY FLOOR PROVEN SIBE AUTOMATION MACHINE
THIS IS A FAST, ENERGY EFFICIENT MACHINE WELL SUITED FOR HEAVY PRODUCTION WORK
WE MANUFACTURE A FULL LINE OF THERMOFORMING MACHINES, SINGLE STATION, DOUBLE ENDERS
FOR FURTHER INFORMATION CALL US (***)-860-1741
