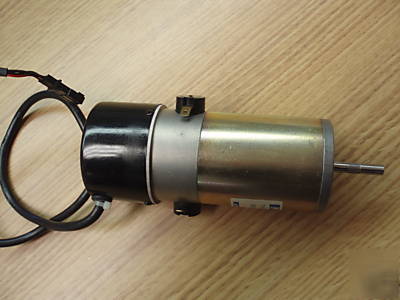

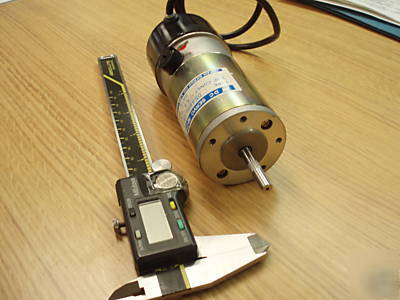

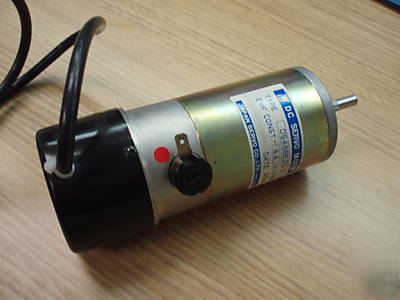

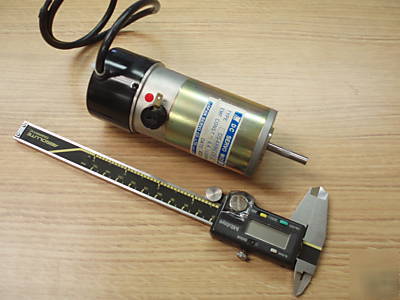

Japan servo #DS48BE25-2 dc servo motor & encoder
Rated Motor Specs at Continuous Rotation
Rated Torque 14 oz-in @ 2700 RPM
Rated Speed: 2700 RPM @ 18 oz-in
Rated Current: 2 AMPS @ 18 oz-in
Torque Constant: 9 oz-in/AMP
Encoder Specs/Electrical Specs
Standard Pulse: 360 P/R single Channel
Output Circuit Method: Open Collector Output
Motor Length with Encoder: 4.84

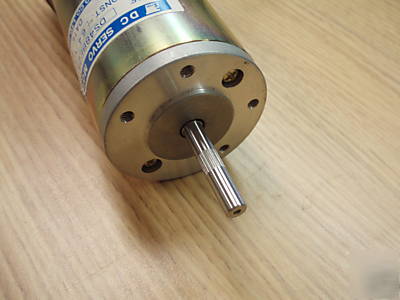

Shaft Diameter: 5.5mm (with knurl)
4 Tapped (M4) Holes on Face for mounting
