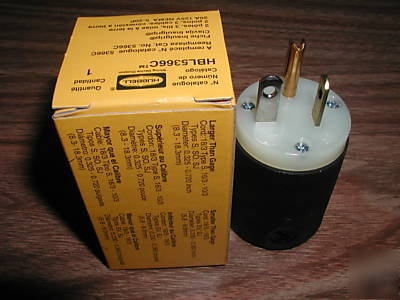

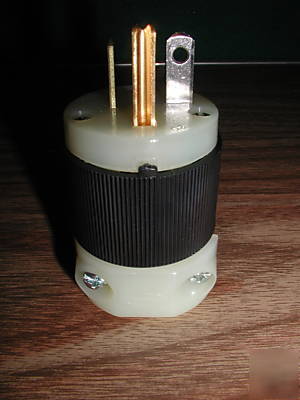

Hubbell HBL5366C nema 5-20P ac plug ****box of 10****
HUBBELL INSULGRIP SERIES HBL5366C NEMA 5-20P AC PLUG ****BOX OF 10****
Poles and Wires - 2 Pole, 3 Wire Grounding
Plug/Connector Grade - Insulgrip
Cord. Dia. .230" - .720" (5.8 - 18.3)
Description - Straight Blade Plug
Type 2 Pole, 3 Wire, Grounding
Certification - UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
Blade Holder Material - Nylon-Natural
Retainer Material Polycarbonate-Clear
Cord Clamp Material - Nylon-Natural
Contact Blades Material - .060" (1.5) Brass
Ground Contact Blade Material - .040" (1.0) Copper Alloy
Terminal Screw Material - #8-32 Brass /Ni plated for neutral
Ground Screw Material - #8 -32 Brass, Multiple Drive (Green)
Dielectric Voltage - Withstands 2,000V minimum
Current Interrupting - Certified for current interrupting at full rated current
Temperature Rise Max 30 degree C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminal Identification - Terminal identified in accordance with UL498 (Brass, White Green
Terminal Accommodation - #18-#10 AWG copper stranded conductor
Flammability UL94 HB or better
Operating Temperatures Maximum continuous 75 degree C, minimum -40degree C (w/o impact)
