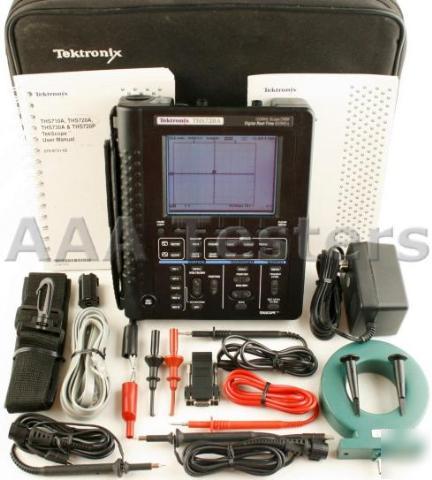

* Tektronix TekScope THS720A 100MHz Ocilliscope - Digital Realtime 500MS/s
* Mueller Hard Point Test Leads (1 Red - 1 Black)
* Pearson Model 110 Wide Bend Current Monitor
* (2) Tektronic Hook Clips (Black)
* Alligator Clips (1 Red - 1 Black)
* Extended Hook Clips (1 Red - 1 Black)
Tektronix TekScope THS720A HandHeld 100MHz Dual-Channel Oscilloscope
The Tektronix THS720A oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix THS720A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
The THS720A shares measurement features with the THS730A, THS720P Oscilloscope/DMMs, which are ideal for electronic applications.
* 500 MS/s Sampling Rates per Channel
* Two Channels and Dual Digitizers
* 33 4 Digit DMM with Datalogger
* Extra Bright Backlit Display
* Independently Floating Isolated Oscilloscope and DMM Channels for Safety
* Full Floating Measurement Capability up to 600 VRMS
* Advanced Trigger Delay, Pulse and Video (Line Count and Field Select)
* RS-232 Programmability/ Communications
* NiCd Battery and AC Adapter
* Field or Bench Electronic Troubleshooting
* Floating (Nongrounded) System Measurements
* Sample Rate (each channel): 500 MS/s
* Sensitivity: 5 mV to 50 V/div (to 500 V/div with 10X probe).
* Vertical Resolution: 8-Bits.
* Record Length: 2500 points.
* Horizontal Accuracy: 200 ppm.
* Autorange: User-selectable.
* Trigger Modes: Auto, Normal.
* Trigger Types: Edge, Pulse, Video, External.
* Video Trigger Formats and Field Rates: Odd field, even field and line.
* External Trigger Input: 5 MHz TTL compatible.
* Waveform Processing: Add, Subtract, Multiply, Calculate Watts = V x I.
* Waveform Storage: 10 waveforms.
* Acquisition Modes: Sample, Envelope, Average, Peak Detect.
* Cursor Measurements: delta Volts, Time, 1/ Time (Hz), Degree (phase).
* Cursor Types: Horizontal Bars, Vertical Bars, Paired (volts @ time).
* Display System: Interpolation: Sin(x)/x. Format: YT and XY. Mode: Vector, Dot, Vector Accumulate, Dot Accumulate.
* DC Voltage Ranges: 400.0 mV to 880 V.
* DC Volts Accuracy: (0.5% of reading + 5 counts).
* True RMS AC Voltage Ranges: 400.0 mV to 640 V.
* Maximum Float Voltage: 600 VRMS CAT II, each channel (probe dependent).
* Resolution: 4000 count, 3-3/4 digits.
* AC Volts Accuracy: (2% of reading + 5 counts).
* Resistance Ranges: 400.0 to 40.00 M .
* Resistance Accuracy: (0.5% of reading + 2 counts); 40 M : (2% of reading + 5 counts).
* Diode Test Range: 0 to 2 V.
* Continuity Check: Audible tone when < 50 .
* Modes: Min, Max, , Max-Min, Avg, Hold.
* Nonvolatile Storage: 10 DMM screenshots.
* Vertical Zoom Capability: 2X, 5X, 10X.
* dB Scale: Selectable, referenced from 1 mV to 10 V.
* dBm Scale: Selectable, referenced from 50 to 600 .
* Safety: UL3111-1, CSA1010.1, EN61010-1, IEC61010.1.
* EMC: Meets Directive 89/336/EEC.
* Power: NiCd rechargeable battery pack with AC adapter (both included).
* Battery Life: Approx. 2 hours from full charge.
* Display Resolution: 320 x 240.
