Sylvac D100S metrology indicator unit 30-804-1101
Sylvac D100S Indicating Unit is a multifunctional digital display which, when used with the Sylvac
range of long travel precision transducer probes, enables a class-leading range of easy to use useful metrology functions
to be carried out to great accuracy. The new D200S is a computer based unit with similar functions to the D100S but
with extra speed (for dynamic function) and versatility.
True inch / metric conversion
Resolution options of 0.01mm, 0.001mm, 0.0001mm and 0.001", 0.0001", 0.00001"
Digital display and analogue scale
Input of nominal sizes and tolerance units
Classification (2 to 6 classes) of parts
Statistical analysis average and range
Input of preselected values (preset)
Minimum / Maximum TIR facility
Dynamic measurements and storage
Scanning of up to 64 transducer probes
Optional pneumatic control of up to 64 transducers
RS 232 (bi-directional) direct output for computer / printer or gauge management
Centronics (parallel) output to printer
Mains/rechargeable battery operation

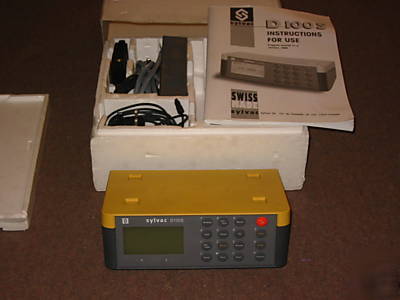

Boxed with instructions, foot pedal and PSU.
Please check my other listings for Multiplexers and RS-Opto cables.
