4 watt pll uhf tv television broadcast transmitter lptv

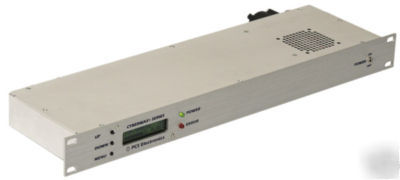

Cybermax TV+ 4Watts UHF TV TRANSMITTER in 19 inch rack mount boxed enclosure
UP for sale is a brand new, fully boxed and assembled unit in 19" inch rack mount metal case, Phase locked loop (PLL), 4 Watts typical output and up to 6 Watts maximum output UHF TV transmitter for the lower part of the UHF band (channels 14-35), direct from manufacturer, PCS electronics in Europe.
Also available: stereo encoder add-on board for this transmitter for USA/NTSC or PAL/SECAM operation, and for ALL PCS TV transmitters. See my other items.
For more information on TV systems in use worldwide, check out this link:
http:// /articles/world-wide-tv-standards
http://www.paradiso-design.net/TVsystems_worldwide.html
Here's a guide to analog TV systems specifications and VHF/UHF channel allocations and frequencies in different countries (576 KB)
http://tb.fileave.com/a/guide.jpg
See full blown picture: Picture
* Here's the link to this item's page on manufacturer's web site:
http:// /cybermax-transmitter-p-1472.html
* Here's the original description from PCS electronics:
OUR POPULAR CYBERMAX SERIES NOW ALSO FOR TV!
Our CYBER MAX TV+ series is out, finally with a range of nicely priced TV transmitters for small TV stations. Build your own TV studio and broadcast your own TV program! Transmit movies from your PC to your living room, re-transmit the TV program you've never been able to receive in your valley, run a college TV station, cover rural areas of Africa with TV signal from satellite stations, run a hotel cable system info pages or just have fun... this unit will keep you busy during the cold winter evenings and is sure to provide lots of fun for many months to come!
This unit in 1H 19" rack enclosure offers 4W of power in the low UHF band. Unit is rugged and made for 24/7/365 operation. Unit runs from 12-15V DC, solar panels, car battery or mains voltage (with universal mains power adapter). It gives from several hundred meters up to about 5km of range depending on antenna type used on transmitting and receiving side. High-gain yagi antennas on both sides might offer even more range in favorable conditions. In our opinion the best quality/price ratio possible.
Look HERE for all manuals, drivers and support.
- Uses our standard 19" 1H rack
- Built-in CPU for controlling and monitoring
- Adjustable TV channel (via LCD module with up/down keys)
- Easily adjustable TV and sound standard (via LCD module)
- Built-in test signal generator
- Supports all analog world TV standards: All PAL versions, SECAM, NTSC
- Stereo sound possible with stereo board
- Output power: 4W typ, adjustable from LCD
- Output impedance 50 Unbalanced, VSWR less than 2:1 for full output
- Output connector BNC female ( rear panel )
- Frequency range:TV UHF low band
1. EU TV Channels: channel 21 to channel 69 (EU)
2. USA TV Channels: channel 14 to 69
3. HAM TV Channels: 421.25, 426.25, 427.25, 434.00, 434.125, 434.25, 434.375, 439.25 and 444.25MHz
- Above channel 35 (EU and USA) output power starts dropping and is very low at channel 69, we do not guarantee performance above channel 35.
Warning: Output is tuned for best performance in low end of UHF band, it may require retuning for higher part of UHF band! It is best that you specify desired channel at time of ordering and we will make sure the unit is tuned properly!
- Audio connectors: RCA (cinch)
- Audio input impedance: 10K resistive, unbalanced
- Power supply: 12-15V 2A, more output power at 15V DC, mains power supply 110-240V/50-60Hz universal, PC style mains cable
What is the DSP Stereo Encoder for USA/NTSC?
- This add-on card enables stereo sound, it was designed for NTSC system, used in USA and most of South/North America.
What is the PAL/SECAM stereo encoder?
- This add-on card enables stereo sound for PAL/SECAM TV standard
1- The warranty is for one year from the delivery date given by tracking results on the carrier's website.
2- The warranty covers labor/parts for the transmitter(s) under normal indoor room operation and void if it was subjected to physical damage or extreme accidental/intentional electrical damage.
Physical damage may result from usual mechanical abuse/drops/falls/shocks or operation in an environment other than indoor room conditions. Electrical damage may result from operation on incorrect AC, DC or from connecting devices or A/V sources other than specified in the manual/specifications or in a few cases extreme surges in AC voltage due to problems with utility grid.
PCS will warrant its products provided the damage is not from the above reasons.
3- The warranty does not include the final RF amplifier transistor which can be easily damaged from high VSWR or bad antenna/cables.
