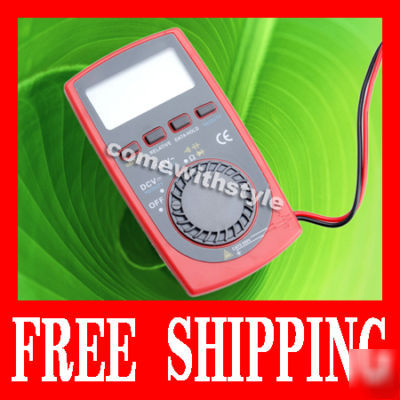

Portable digi pocket multmeter voltage meter dmm dvm
Maximum voltage between any Terminals and Grounding: 300V rms or 300DCV
Maximum Display: 3999. (3 3/4 digits)
Measurement Speed: Updates 3 times/second
Operating Temperature: 0 C~40 C (32 F~104 F), Relative Humidity: 75
Storage Temperature: -10 C~50 C (14 F~122 F)
Altitude: Operating: 2000m; Storage: 10000m
Battery Type: 3V button battery (CR2032)
Battery Deficiency: At around<2.4, VDisplay "-/+"
Overloading: Display "OL"
Sleep Mode: To preserve battery life, the meter automatically turns off if you do not turn the rotary switch or press any button for around 15 min.
Dimensions: 108H 58W 12L (mm)
Safety/Compliances: IEC61010 CAT II 300V overvoltage and double insulation standard
Accessories: Built-In Test Lead 1 pair; Vinyl Holder 1 piece; English Operating Manual
Accuracy: (a% reading + b digits)
Operating Temperature: 23 C 5 C
Temperature Coefficient: 0.1 (specified accuracy) / 1 C
-Frequency Response: 40Hz~400Hz
-Display effective value of sine wave (mean value response)
Open circuit voltage: approx. 0.45V
-The inputted voltage is sine wave
-When 10kHz~100kHz: 30V rms
-Press Hz/DUTY button at ACV~ or DCV range to select Duty Cycle measurement mode
-Reading is only for reference
Reading is only for reference
-Open circuit voltage: around 0.45V
-Measuring under Relative mode
When the tested capacitor is greater than 100 F, the reading is only for reference
Sell for $59 and up at most retailers !
We stand behind every product we sell. If you are not pleased with your purchase, we'll be happy to make an exchange or refund the product price (less S&H fees) within seven (7) days of your purchase. Please email us for a RMA # before you send your order back. For detail return procedures, please check our Return Instruction
Our products are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. This item comes with 1-year warranty. We carry all full-coverage warranty services.
