MSP430FG4619, 16-bit mixed signal microcontroller mcu
16-Bit Mixed Signal Microcontroller

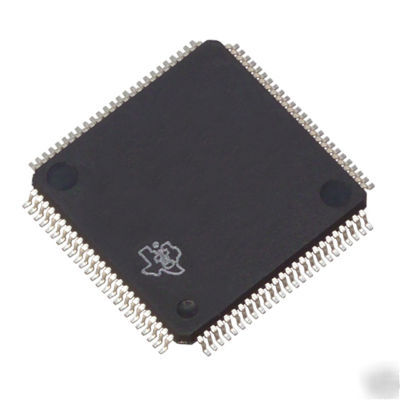

MSP430FG4619IPZ, 16-Bit Ultra-Low-Power Microcontroller (MCU), 120KB Flash, 4KB RAM, 100 Pin LQFP, Texas Instruments.
The MSP430FG461x series are microcontroller configurations with two 16-bit timers, a high performance 12-bit A/D converter, dual 12-bit D/A converters, three configurable operational amplifiers, one universal serial communication interface (USCI), one universal synchronous/asynchronous communication interface (USART), DMA, 80 I/O pins, and a liquid crystal display (LCD) driver with regulated charge pump.
The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 s.
Typical applications for this device include portable medical applications and e-meter applications.
* Low Supply-Voltage Range, 1.8 V to 3.6 V
* Ultralow-Power Consumption:
* Active Mode: 400 A at 1 MHz, 2.2 V
* Off Mode (RAM Retention): 0.35 A
* Wake-Up From Standby Mode in less than 6 s
* 16-Bit RISC Architecture, Extended Memory, 125-ns Instruction Cycle Time
* Three Channel Internal DMA
* 12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature
* Three Configurable Operational Amplifiers
* Dual 12-Bit D/A Converters With Synchronization
* 16-Bit Timer_A With Three Capture/Compare Registers
* 16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers
* Supply Voltage Supervisor/Monitor With Programmable Level Detection
* Serial Communication Interface (USART1), Select Asynchronous UART or Synchronous SPI by Software
* Universal Serial Communication Interface
* Enhanced UART supporting Auto-Baudrate Detection
* IrDA Encoder and Decoder
* Serial Onboard Programming, Programmable Code Protection by Security Fuse
* Basic Timer with Real Time Clock Feature
* Integrated LCD Driver up to 160 Segments With Regulated Charge Pump
