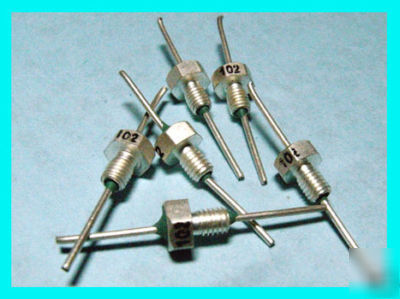

1000PF feedthru feed through capacitors threaded (X6@)
Feed-through capacitors are originally designed for DC power line in RF module or system. It passed through the DC (and low frequency signals) but blocks the RF energy. In practical use the feed through capacitors are fitted to the metal case of the RF module on holes where the power wires enter the system. They let the DC pass through but will stop the RF from escaping from the device through that hole to the outside wiring.
I can't remember its brand and datasheet, but based on its 0.8mm lead diameter it is, to my best knowledge, around 5A rated current. Take for granted its rated voltage is 100V, with 200V a bonus! The rugged case with resin seals at both ends provides excellent environmental protection. Being a C-type feed thru, it has a similar spec. as the one shown in below chart.
* Fixing thread diameter: M3 x 0.5
They came in without nut and lock-washer as we tapped the thread and screwed them into the aluminium housing but if you don't have the tools, you would need them. Therefore I would supply the nut and lock-washer to you free of charge.
