New 16 x 2 lcd module blue backlight SC162A 5V 5 X7 dot

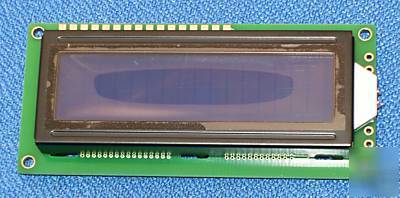

16 x 2 LCD Module Blue backlight SC162A
SC162A, a dot-matrix character LCD module, design for displaying 2 line 16 row characters. Character font is 5x7 dots with cursor, The SC162A provides two types of interfaces to MPU: 4-bit and 8-bit interfaces. SC162A can includes EL or LED backlight for custom design. The custom can design for color of EL or LED backlight, viewing angle and LCD type.
Back-light "+ ve" supply (+ 4.2V)
Back-light "- ve" supply ( 0V)
Click here to download the datasheet:
http:// /New_products_info/Datasheet/LCD_Panel/SA162_datasheet.pdf
Reference Sample Code (Just for reference)
http://www.electronicslab.ph/forum/index.php?topic=3112.0;wap2
