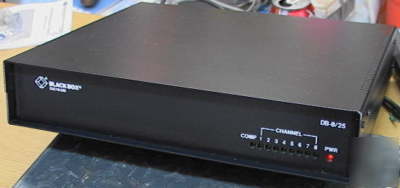

Black box db-8/25, 8 port data brodcast unit TL158A-R3
Black Box DB-8/25, 8 Port Data Brodcast unit TL158A-R3
The DB25 Data Broadcast receives an asynchronous signal and redistributes it to
up to eight slave devices. It can be used, for example, to distribute a signal from a
computer to eight different terminals. The DB25 Data Broadcast takes the signal
appearing at the composite connector (COMP), regenerates it, and distributes it to
eight slave connectors (CH 1 8).
Up to 19.2 kbps; the unit is transparent to data and
Each port individually DTE/DCE selectable
(10) Red LEDs: PWR, Channels 1 through 8 active,
250,000 hours (ground benign environment)
TL158A-R3: 115 VAC, 60 Hz @ 50 mA; TL158AE-R3:
2.3"H x 12.1"W x 11.2"D (5.8 x 30.7 x 28.4 cm)
7 lb., 2.3 oz. (3.24 kg) without power supply; 8 lb.,
5.1 oz. (3.77 kg) with power supply
This item powers up and looks in great condition! i can't test this item so u can ask questions.
