Tsugami model B018B-iii panther b swiss cnc lathe

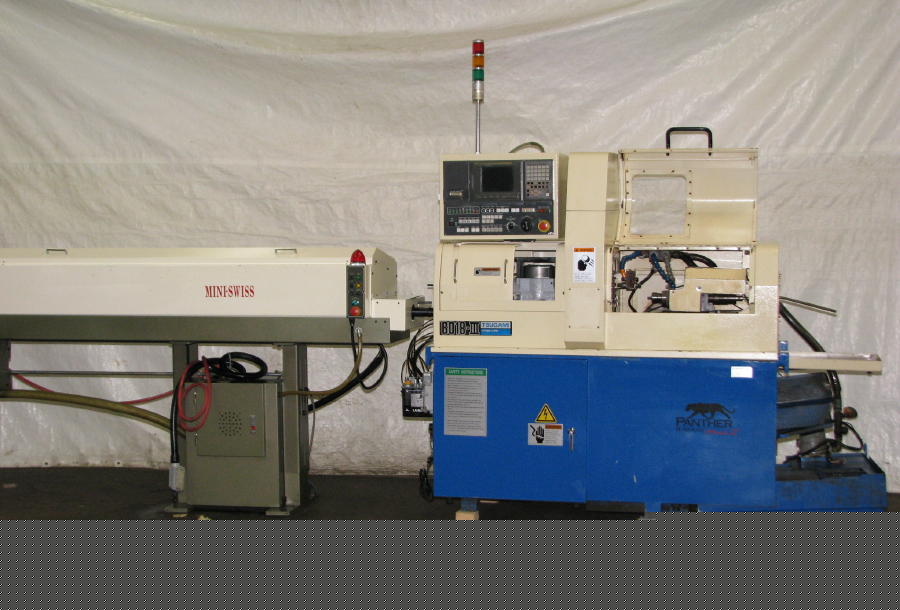

Tsugami Model B018B-III Panther B Swiss CNC Lathe
http:// /watch?v=Ip4H34nSWEc
Mdoel No. B018B-III, Panther B Series Mark II
This machine has been serviced and tested under power
by a certified Tsugami technician. We can offer a full
turn-key option available at additional cost.
Turning Capacity: .118 - .70
Maximum Drilling Diameter: .275
Maximum Tapping Diameter: M6 x 1
Maximum Back Spindle Chucking Capacity: .70
Maximum Back Spindle Drilling Capacity: .157
Maximum Back Spindle Tapping Capacity: M3 x 0.5
Main Spindle Speeds: 200 - 10,000 RPM
Back Spindle Speeds: 200 - 5,000 RPM
Total Number of Tools: 8 - OD, 3 - ID
Tool Size: .472 x .472 x 3.34 Length
Rapid Traverse Rate: 700 IPM
Overall Machine Dimensions (not incl. bar feed): 61.5 x 36.5 x 66
Fanuc 21i-TA 4-Axis CNC Control System with RS-232 Port
Fedek Mini Swiss Magazine Type Bar Feed
Tool Geometry/ Wear Compensation
Approximate Net Weight: 4,200 Lbs.
