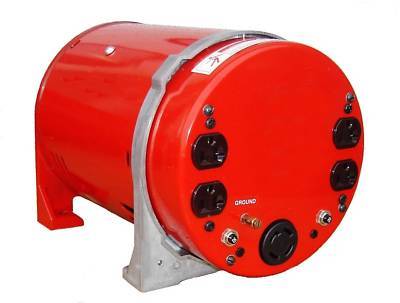

Generator - belt drive driven - 4,000 watts - 120/240V
4,000 Watts (4 kW) - 120/240V - Brushless - Heavy Duty Industrial Designed - Two Bearings - Bi-Directional (Generates in Clockwise or Counter-clockwise)
SEE OUR FULL LINE OF BELT DRIVEN GENERATORS BY FOLLOWING THIS LINK: BELT DRIVEN GENERATOR LINE
* Heavy Duty Industrial Designed Winco 4,000 Watt - 120/240V - Brushless Belt Driven Generator
* Winco's heavy duty industrial designed, rugged, two bearing generator come with double baked armatures, epoxy baked rotors, oversized diodes, cast iron drive-side end bracket and double sealed permanent bearings
* Double sealed permanent bearings to insure maximum performance and life
* Bi-Directional: rotates either direction (clockwise or counter-clockwise) without changing the wiring
* Minimum Hp Required for Operation: 8 Hp
* This unit is capable of starting a 1.5 Hp motor
* RPM (Operatoring Speed): 3,600
* Motor Starting Capability: 1.5 Hp
* Circuit Breakers: 2 Each - 20 Amp
* Receptacles - 120V: 4 Each - 15 Amp (NEMA 5-15R)
* Receptacles - 240V: 1 Each - 20 Amp (NEMA 6-20R)
* Rated A/C Amps: 33.3 / 16.7
* Overall Dimensions: 15.13" L x 8.5" W x 8.94" H
