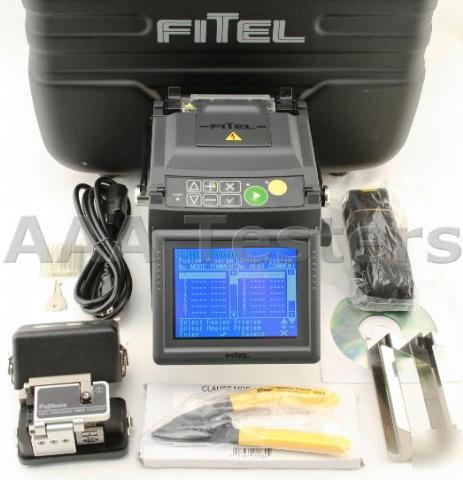

Furukawa fitel S199S fiber fusion splicer S199 cleaver
* Fitel S199S Fusion Splicer
* Fujikura CT-04 High Precision Fiber Cleaver
* (20) Fujikura FP-03 Fiber Protection Sleeves
* Fitel S950 AC Adapter/Battery Charger
* Clauss CFS-02 Fiber Optic Stripper
* Hard Carrying Case w/ Strap
SingleMode & Multimode Clad Alignment Fiber Optic Fusion Splicer
Includes Fujikura CT-04 High Precision Fiber Cleaver, 20 Fujikura FP-03 Fiber Protection Sleeves, Hard Carrying Case w/ Strap & Full Accessories
Warranty: 60 Day Exchange Warranty
Furukawa Electric presents the new FITEL S199S clad-aligning fusion splicer for SM, MM, NZDS and DS fibers.The S199S leads the industry with its small size, ease-of-use, and state-of-the-art technology. It boasts a 25-second splice time the fastest in the industry and has the easiest operating procedures with fail-safe functionality. All of these features are incorporated into a lightweight (2.7 kg), small package (150 x 150 x 150 mm) that assures consistently high-quality splices in all conditions, including aerial workplaces.
* Only 150mm (5.9 ) cubic size and 3.3kg (7.3 lbs, with AC/DC converter)
* Either AC/DC converter or battery can be slotted in the main body without wiring
* 25-second splice and 90-second protection the fastest in the industry
* Simultaneous X and Y views and separated view window for fiber and data on 5 color LCD
* Wind proof to 15m/sec (30mph); smart, rugged design and easy fiber loading
* 5-step battery capacity indicator
Silica glass-based optical fibers: SM, MM, NZDS and DS fibers
with identical Furukawa fibers.
(The splice loss may differ according to the fiber manufacturer and may have much larger loss when core has a larger eccentricity)
90s (typical for 40mm length sleeve)
120s (typical for 60mm length sleeve)
Applicable sleeve length: 40 or 60mm
Built-in cooling fan and mechanical pretension fiber clamp
Temperature: -10 to +50 C (14 to 122 F)
Humidity: 90% at 38 C (100 F )
Altitude: 3,658m/12,000ft (484mm Hg)
Storage: -40 to +60 C (-40 to 140 F )
LCD: 5 color with anti-reflection coating and protection cover
V-Groove illumination lamp: to help fiber loading
* 32 splice programs including preprogrammed for major fiber types and customizable programs
* 10 heat programs, 4 pre-programmed and 6 customizable
* Inspection: cleave angle, fiber end gap, offset, splice errors (bubbling, thickening, streak), splice loss estimation
* Display information: Operating and error messages, ARC counter, clock, splice status, heater status, estimation loss and inspection results, fiber image (X and Y views)
* Message languages: 10 languages are selectable. Contact your dealer for details.
* Operating capacity with S940 battery 30 splices and heatings at continuously splicing with the thermal stripper.
Main Body: 150W x 150D x 150Hmm without LCD/ 2.7 kg with LCD
AC/DC Converter: 129W x 150D x 31H mm (slotted into the main body)/ 0.6kg
Battery Pack: 129W x 150D x 31H mm (slotted into the main body)/ 0.8kg
AC100-240V with AC/DC converter Rechargeable battery (DC12V)
