25" swg 3HP spdl willis solberga se-2035 drill press, g
25" Swg 3HP Spdl Willis Solberga SE-2035 DRILL PRESS, G
25" Swing 3HP Spindle Willis Solberga SE-2035 DRILL PRESS, Geared Head

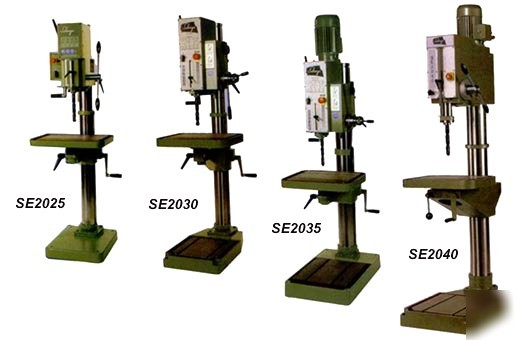

NEW WILLIS-SOLBERGA (SWEDEN) DRILL PRESS
Adjustable drill head heights on all models (n/a for SE2040)
Drill heads & table arms can swivel 360 degrees around the
Helical drive Gears with fiber to steel mesh provide virtual
maintenance free, quiet & efficient operation
Spindles and columns are made of top quality Swedish steel
Spindles are designed recessed into the quill housing providing
Powerfeed units are equipped with an automatic feed overload
Each machine is equipped with electrical thermal overload switch,
no-volt release and emergency stop
Drills to the center of circle: 25"
Driling capacity, mild steel: 1.4"
Available powerfeed rates (4): 0.004 - 0.012
Max distance spindle - table: 32"
Vertical travel od drill head: 7"
HP (low speed/hi speed): 2.2/3
Flanged Quill w/Double Return Spring
Foot Operated Reversing Switch
Gang Drill Bases (several sizes available)
Machine is also availabe in a bench model
Machine is available with a 40" column for mounting on gang base
