Kenwood zetron uhf repeater 450-470MHZ gmrs ham
KENWOOD 30-SERIES & MODEL 37 ZETRON REPEATER CONTROLLER 450-470 Mhz 35-WATT UHF FM CUSTOM BUILT DESKTOP OR RACK MOUNTABLE REPEATER 1-to-32 FULL-DUPLEX CHANNELS ADJUSTABLE RF 5 to *35-WATTS WIDE BAND as per KENWOOD'S TK-830 SERIES SPECS.
THIS ITEM HAS BEEN CLEANED & BENCH TESTED IT IS IN GOOD PHYSICAL & WORKING CONDITION IT HAS SOME DINGS & SCRATCHES FROM NORMAL USE.

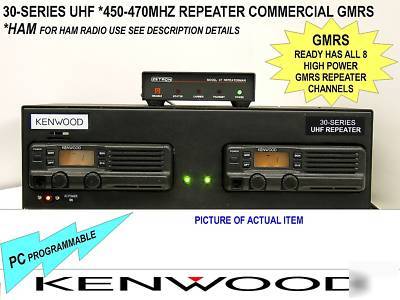

THE REPEATER IS PRESENTLY PROGRAMMED FOR GMRS USE IT HAS ALL 8 OF THE HIGH POWER GMRS FREQUENCIES PROGRAMMED IN IT WITH CH-1 BEING THE MAIN GMRS REPEATER CHANNEL ON TX 462.550mhz RX 467.550mhz. TWO (2) CTCSS PL ACCESS CODES ARE PRESENTLY PROGRAMMED IN THE ZETRON REPEATER CONTROLLER THEY ARE 151.4 & 123.0 THESE CAN BE CHANGED ANY TIME. THE REPEATER ALSO HAS A BUILT IN AC POWER SUPPLY
List of the 8 GMRS REPEATER channels programmed as follows
THE 30 SERIES RADIOS TX & RX RF PORTION ARE PC PROGRAMMABLE. THE ZETRON MODEL 37 REPEATER CONTROLLER IS USER PROGRAMMABLE you do not have to connect anything to it THE ZETRON REPEATER CONTROLLER CAN BE PROGRAMMED WITH ANY STANDARD DTMF TOUCH TONE PAD OR MICROPHONE REMOTELY OVER THE AIR VIA YOUR TWO-WAY RADIO HANDHELD BASE OR MOBILE. also the ZETRON repeater controller has a master programming code it has been reset to the factory default programming code ready for the next user to change at will.
THE REPEATER CAN BE USED AS A SINGLE or MULTI USER SUPPORTING UP TO 2 USER CTCSS PL CODES FULL DUPLEX REPEATER OPERATION. THE ZETRON MODEL 37 REPEATER CONTROLLER ALSO SUPPORTS CARRIER SQUELCH REPEAT AND HAS USER PROGRAMMABLE CWID, TOT & MORE.
ALSO INCLUDED for FREE: ZETRON 37 repeater controller programming instruction manual. KENWOOD 30-SERIES PC programming software, Repeater operating & programming instructions. included & Other need to know instructions included on CD.
NOTICE: FOR RACK MOUNTING THE CABINET REQUIRES 2 OPTIONAL CASE ADAPTERS THAT SCREW INTO THE SIDE OF THE CASE ALLOWING IT TO BE RACK MOUNTED.
**HAM RADIO USE it will also work in the 440mhz ham band NO COMPONENT MODIFICATIONS REQUIRED to use it in the HAM radio band you will have to retune the RX & TX RF decks . It is presently tuned for best performance on the GMRS freq that it was bench tested on.

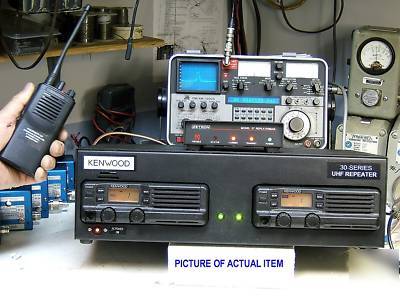

BENCH TESTED: Test was on TX 462.550 Mhz MAX RF OUT =45 Watts rest @ 35-watts, Repeat & Mic AF dev OK, CTCSS encoder all OK. RX TEST ON 467.550Mhz RECEIVER SENSITIVITY test .35UV RF=-25DB SINAD that's excellent receiver sensitivity, CTCSS decoder OK.
KENWOOD'S TK-830 IS A HEAVY DUTY RADIO MADE FOR PUBLIC SAFETY USE. USED PROPERLY IT CAN RUN CONTINUOUS DUTY BY TURNING THE RF POWER DOWN TO 2-WATTS & USING AN EXTERNAL RF AMP OR RUN INTERMITTENT DUTY @ 20-WATTS
*RF POWER OUTPUT IS ADJUSTABLE 2-watts to 45-watts I do not recommend running it @ 45-watts. I WOULD RATE THIS @ 20-WATTS FOR INTERMITTENT DUTY *Has cooling fan for continuous duty @ 2-watts or 50% duty @ 20-watts 25% duty @ 35-watts
Duplexer is not included. You will have to connect it to your duplexer, combiner or two antennas.

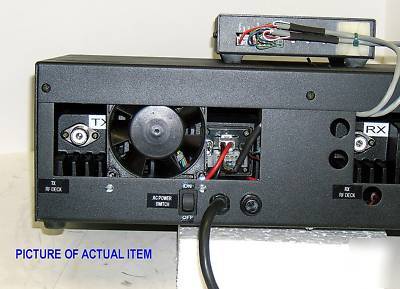

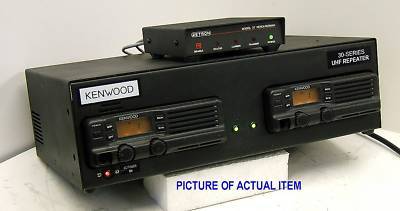

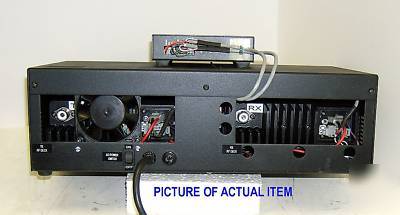

PICTURES: THE PICTURES ARE OF THE ACTUAL ITEM Test equipment and other items in the back ground are not included.
SELLING TO: THE USA, CANADA, MEXICO, PUERTO RICO,
