2 security camera cctv network dvr recording system

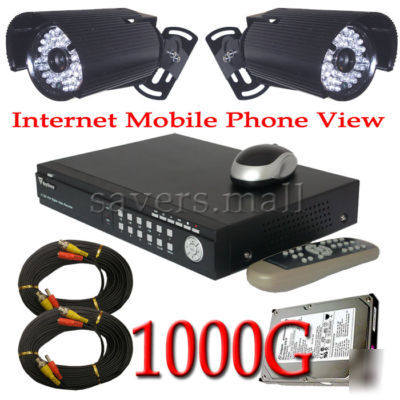

2 Cameras Completed Surveillance Security CCTV Monitoring & Recording System
1. 4 channel H.264 Standalone DVR
2. 2 x 48IR 1/3 Sony CCD 540 TV Line External Cameras
3. 2 x 20m(60ft) Video Power Combined Cables
6. Manual & Software & Brackets
With Internet & Mobile Phone Remote Access!
Easily to be extended to be FOUR Cameras Kit by adding another two Cameras and cables
Rear of the 4 Channel Standalone CCTV Internet View DVR
1000G(1T) HDD is Installed inside the DVR!
The H.264 hardware compression generates high resolution picture & fluent network transmission,
and allows to record more data with smaller HDD space.
Connect this DVR to your router to get it online for remote monitor no matter where you are!
* H.264 real-time high compression, support dual stream network transmission
* Stand-alone Linux2.6 operation system
* Graphics & Windows OSD interface
* Support D1, HD1 and CIF recording resolution
* Support triplex operation: record, playback, net transmission
* Support to operate with USB mouse
* Support remote view with Mobile Phone
* Support to backup & upgrade with USB flash disk
* Support to real-time remote view with IE (Internet Explorer)
* Support to transmit audio via network
* Support PTZ control via built-in RS-485 port
* Selectable packing time for recording files
BNC 4-channel inputs / 2-channel outputs
RCA 4-channel inputs / 2-channel outputs
PAL: CIF(352x288), HD1(704x288), D1(704x576)
NTSC: CIF(352x240), HD1(704x240), D1(704x480)
PAL: 25fps@D1, 50fps@HD1, 100fps@CIF
NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF
Always / schedule / motion detection / sensor triggered
Support TCP/IP, UDP, DHCP, DNNS, PPPoE
Support to live view with IE (Internet Explorer) & with Mobile phone
USB mouse, USB disk (backup, upgrade)
Normal play, fast forward, fast rewind, frame by frame
Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network
Built-in RS485, support PELCO-P & PELCO-D
Motion Detection, Sensor triggered, video loss, HDD error, HDD full
4 sensor inputs / 1 alarm output
Crisp, clear state of the art imaging
Built-in infrared LED, may work under zero degree of illumination environment
Powerful 1/3" Sony Super HAD CCD color image sensor chip
48 ( 0.5) LED IR illuminators view up to 180ft
Indoor / Outdoor for Day / Night
NTSC: 768(H)x494(V) & PAL: PAL:752(H)x582(V)
6mm - if you need 3.6mm, 8mm or 12mm, pls contact us
1. We are so proud of our Products Quality that we assure you 12 months warranty!
2. We are online for you 24/7. Whenever you meet trouble with our products, pls feel free to email
3. We will refund you fully or replace the item when it arrives faulty.
For reseller price, pls contact us !
