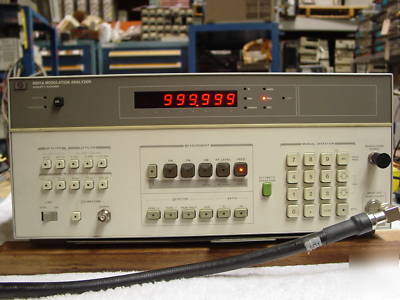

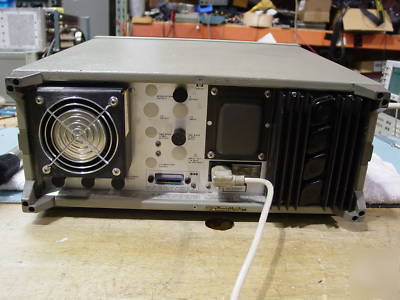

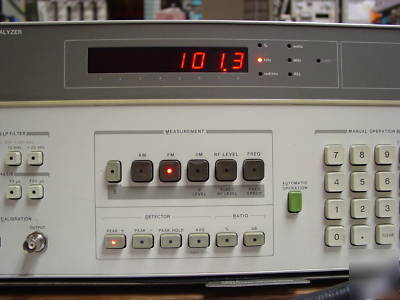

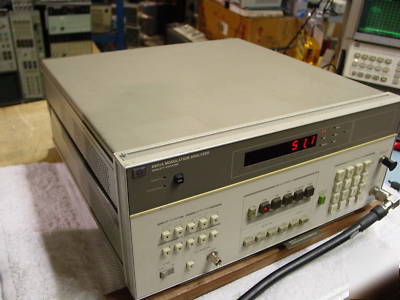

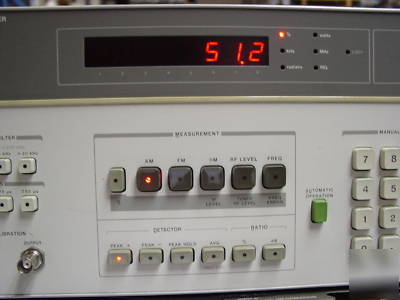

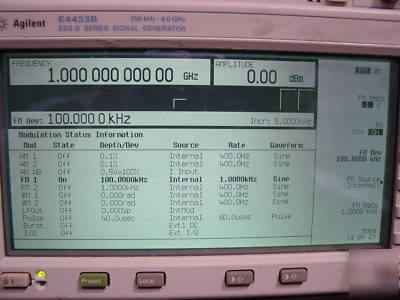

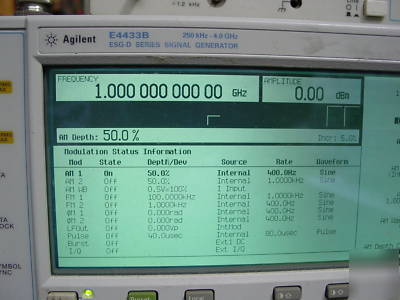

Hp 8901A modulation analyzer to 1.3GHZ very nice
All parameters describe performance in automatic operation or properly set manual conditions. Specifications describe the instrument s warranted performance.
Frequency Range: 150 kHz to 1300 MHz.
150 kHz to 650 MHz: 12 mVrms (-25 dBm) to 7 Vrms (1 Wpeak).
650 MHz to 1300 MHz: 22 mVrms (-20 dBm) to 7 Vrms (1 Wpeak).
Supplemental Characteristics Tuning: Automatic, track (frequencies >10 MHz), manual frequency entry. Acquisition Time (automatic operation): ~1.5 second. Input Impedance: 50 W nominal. Maximum Safe Input Level: AC: 35 Vrms (25 W for source SWR <4) DC: 40 V
150 kHz to 10 MHz: 20 Hz to 10 kHz.
10 MHz to 1300 MHz: 20 Hz to 200 kHz1.
150 kHz to 10 MHz: 40 kHz peak maximum.
10 MHz to 1300 MHz: 400 kHz peak maximum.
250 kHz to 10 MHz: 2% of reading 1 digit, 20 Hz to 10 kHz rates.
10 MHz to 1300 MHz: 1% of reading 1 digit, 50 Hz to 100 kHz rates. 5% of reading 1 digit, 20 Hz to 200 kHz rates.
Demodulated Output Distortion:
400 kHz to 10 MHz: 0.1% THD, deviations 10 kHz.
10 MHz to 1300 MHz: 0.1% THD, rates and deviations 100 kHz.
AM Rejection (for 50% AM at 400 Hz and 1 kHz rates):2 20 Hz peak deviation measured in a 50 Hz to 3 kHz BW.
Residual FM (50 Hz to 3 kHz BW): <8 Hzrms at 1300 MHz, decreasing linearly with frequency to <1 Hzrms for 100 MHz and below.
