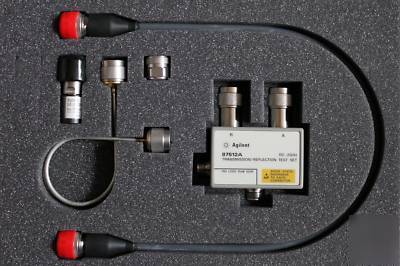

Agilent 87512A transmission reflection set, dc to 2 ghz

The HP / Agilent 87512A/B transmission/reflection test kits provide the capability to measure the reflection and transmission characteristics of 50 ohm or 75 ohm devices up to 2 GHz with a Network Analyzer.
The test port of the HP / Agilent 87512A is a 50 ohm type N(f) connector, and the test port of the Agilent 87512B is a 75 ohm type N(f) connector.
The Agilent 87512A/B include precision short/load termination for calibration.
* Operating Temperature: 0 to 55 degrees C
* Dimensions: 83mm x 91mm x 43mm
Additional information can be found here:
http:// /DataSheet/HP_AGILENT/HP__87512a.pdf
http://www.home.agilent.com/agilent/editorial.jspx?cc=US&lc=eng&ckey=1000002226:epsg:man&nid=-35194.536880118&id=1000002226:epsg:man
