New brand bga rework station for bgas, qfps, etc.

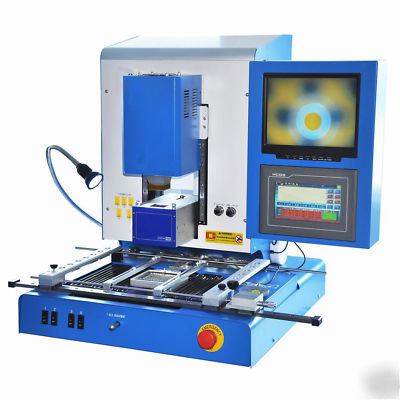

NEW BGA rework station for BGAs, QFPs, etc. SP-400
The streamline design is gorgeous and room-saving;
Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and mounting function;
Upper/lower hot-air heating,bottom infrared,three independent heating areas, temperature and time can be displayed digitally on the touch screen;
Powerful cross flow fans cool the bottom heating zone rapidly and constantly;
Color optical system with functions of spilt vision, zoom-in and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 22X optical focus;
Embedded industrial computer, PLC control, real-time temperature profile display, can display set profiles and 5 practically-tested profiles; able to analyze the 5 practical, and compare with the history saved profiles.
10 color LCD monitor, can be replaced to 12 , or 14 LCD display screen;
Built-in vacuum pump;60 rotating in angle mounting nozzle is micro-adjustable;
8 segments of temperature up (down) and 8 segments of constant temperature control, no limited profile curves can be stored in the industrial compute;
Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range;
Equipped with different hot air nozzles, easy to replace and able to locate in any angle;
Big size splint, equipped with deformation-proof supporting device,suitable for the accurate rework of all kinds of PCB.
PCB dimension: W20*D20~W350*D350mm
Working table adjustment: 10MM forward/backward, 10MM left/right
Bottom preheatfar infrared: 3000W
Temperatur control: K-type thermocoupleclose cycle controlled
PCB locating way: Outer or Jig
Power supply: single-phase 110V/220V,50/60Hz,4.5KW
Machine dimension: L600*W600*H750mm
Nozzles ............5pc(44,41,38,31,26mm,1pcs for each size)
Tools box .........1pcs
Inside the hexangular wrench ........1set
Clamp for Motherbord ........1set
Brush ........1pcs
USB mouse .....1pcs
Vacumm IC pikcer ......1pcs
Aluminium plate for BGA IC reballing ...1pcs
Thermo sensor wire(High precision) ....1pcs
English manual 1book
Warranty : one year limited on all electronic parts!
