Ancure x-ray fluoroscopy cardiac &vascular marker board
Ancure (Guidant) X-Ray Fluoroscopy Cardiac & Vascular Marker Board
Please note : This item comes with only what is seen in the pictures, any features, software or accessories that may be shown below in the manufacturers description may be available for purchase separately from the manufacturer please take a look at the pictures shown for this item & feel free to contact us should you have any questions.
This device is used for x-ray marking to locate cardiac and vascular surgery landmarks.

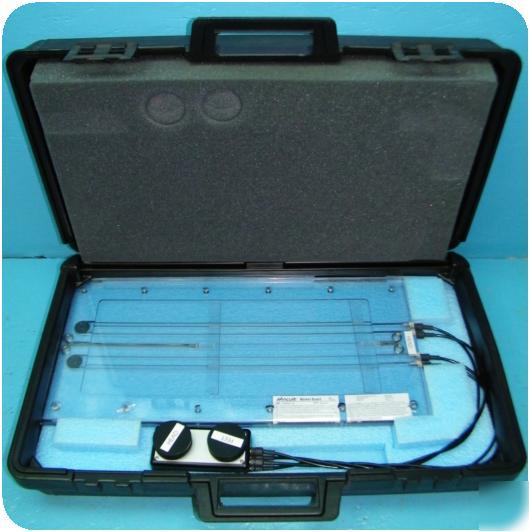

Comes in a hard padded case with original operating manual. There is a set of controls knobs to move the radiopaque bars inside the plastic casing. Bar width is 16 maximum separation.
Guidant Cardiac and Vascular Surgery Group
Individual bar control knobs
16 maximum bar width separation
Board dimensions: 23 x 11 x thick
Case dimensions: 27 x 18 x 7 thick
From the instructions pamphlet-
The ANCURE Marker Board consists of two adjustable, radiopaque bars enclosed in a plastic casing. The radiopaque bars serve to locate anatomical landmarks identified during fluoroscopy.
The radiopaque bars are moved by control knobs (two sets paired dials) mounted on a control box. The control box is attached via control lines to superior end of the ANCURE Marker Board. Rotation of the superior and inferior sets of control knobs will result in upward or downward movement of the superior and inferior radiopaque bars, respectively. Oblique movement of the bars is controlled by rotating the ventral dial of the paired set of dials.
Place the ANCURE Marker Board under the table pad with the control lines exiting at the head of the table. Verify the ANCURE Marker Board is laying flush with the table. Towels may be used to even out an uneven table surface.
