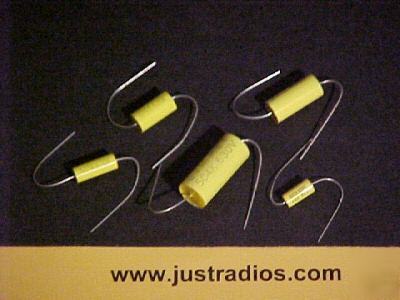

.006UF at 630V tubular axial film capacitors : qty=28
On sale are a package of twenty-eight (28) brand new 0.006 mfd tubular axial leaded 630 volt metalized polypropylene film capacitors. These film capacitors are constructed of premium metalized polypropylene (ISO 9001/2000 & ISO 14001 certified). As are all of our film capacitors are 100% RoHS compliant.
At higher frequencies polypropylene and polystyrene are more stable that polyester, so for film capacitors under 0.01 mfd (which are the ones that handle high frequencies), polypropylene or polystyrene capacitors are better that polyester capacitors.
Capacitor Features and Specifications:axial_capacitors
* Premium quality MPT Metalized Polypropylene film dielectric aluminum foil electrode construction.
* Tubular body outer wrapped with polyester tape and ends sealed with epoxy resin, in non-inductive type.
* Extra long two inch (50mm) copper-clad steel axial leaded for easy "under chassis" installation.
* Electrode and lead spot welded, contact resistance is minimized.
* Excellent replacement for paper/wax capacitors in tube radios/amps/audio systems. Also, Telecommunication instruments, industrial electronics and general electronics equipment.
* Excellent long term stability.
* High reliability with "self-healing" performance.
* Operating temp. range:-40 to +85C.
* Reference Standard: GB10190
* Linear and slightly neg temperature coefficient.
* Dissipation Factor at 20C,1KHz =< 1%
* Body size: 7mm by 16mm (5/32" by 5/8")
* Insulation Resistance: 25000 Mohm (20C,1min)
* Low dissipation factor and high insulation resistance.
* ISO 9001/2000/14001 certified
