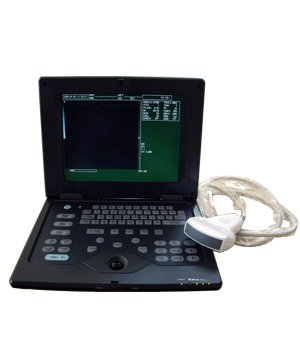

Laptop b-ultrasound ultrasound scanner + two probes
designed for bedside use and emergency scanning or in a rescue situation
Bright and clear image quality
Portable and light weight, only 2kg.
The probes offer a wide range of diagnostic applications
Cost effective solution for family doctors, veterinary scanning
The complete software package, the multi- step zoom,
and the high product versatility are available in it
Scanning Method: Convex, linear multi-frequency with wide band
Display Mode: B, B+B, B+M, M
Monitor Size: 10.4" TFT color LCD
Image Procession: DFS, DRF, RDA, VGA/DSC and image pre & post
Cine-memory: 206 frames (human), 256 frames(vet)
Image magnification: 1.0, 1.2, 1.5, 2.0 times
Multi-step Zoom (1 : 2) in both real-time and frozen modes
Depth adjustable in real-time of B and B+B mode
Image Conversion is U/D, L/R and B/W.
8 different coded-color on a external color monitor
15 different kinds of body marks
Measurement is in Distance, Circumference/Area, Heart Rate,EF ratefor heart, and
GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal
Characteristic showing in real-time clock, ID, Sex, Age, Focusing info and Hospital Name
main unit + one 3.5MHz convex probe.
Cine-memory: 206 frames (human), 256 frames (vet)
Multi-step Zoom (1:2) in both real-time and frozen modes
Measurement is in Distance, Circumference / Area, Heart Rate, EF rate for heart, and
GS, CRL, BPD, HC, FL, AC for OB/GY measurement,andGestational Age, Fetal
main unit + one 3.5 MHz convex probe + 7
.5 MHz endorectal linear probe .
Mainframe (included one HYLB-319 battery
l40/7.5MHz endorectal linear probe
video frequency connect cable
High speed USB connect cable
