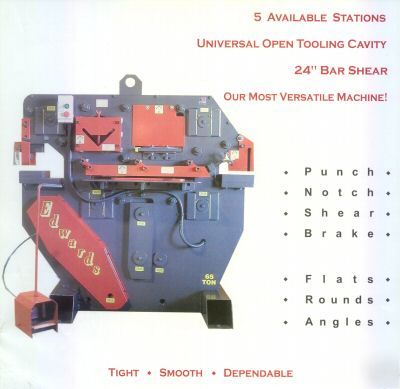

New 65 ton edwards jaws iv ironworker w/24"bar shear
New Edwards Hydraulic 65 Ton Jaws IV Ironworker 5 Station, Dedicated Notching Station Equipped with All standard Features: COPER NOTCHER STANDARD ON THIS MODEL. 1 YEAR WARRANTY/ Hydraulics Fully Charged/ Sound Insulated/Direct Drive /Max.Size punch 1-1/16" dia./Cplg Wrench/Slat Shear blades Installed-Low rake/Angle shear blades Installed/Fully Gaurded/Adjustabke Steel Punch Strippers/Flat Adjusting Holddown Bars/Threaded Holes in Tables for Jigs/Pipe Clpg Welded to back side of unit for optional back gauge/Slots for gauging feed tables/Remote Foot pedal/Integal Lifting Lug for portablility
MFG: LIST PRICE: $13,396.00 - OUR Special $ 11,999.99
1. Max Punching Capacity: 1-1.16" dia in 3/4"plate
2. Flat bar shearing max width: 3/8" x 24 :" or 1" x 4"
6. Angle Shear Max Size: 5" x 5 " x 1/4" or 4" x 4" x 3/8"
7. Coping/Notching Max Capacity 2-1/2" x 6" x 3/8"
8. Open Cavity: 11-1/2" x 9/3/4" Tall
12. Main Motor 7-1/2"HP 208/240/3/60
SINGLE PHASE REQUIRED : ADD $275.00 FOR UPGRADE COST ! DELIVERY Should not change ! Our stock machines are ordered with 208/240/ 3 phase electrics: 440/3/60 upgrade cost: Add; $120.00
STD PUNCH & DIE KIT: (8) Pce Set 3/16" to 1-1/16" : Price $260.00
"OPTIONAL ACCESSORIES AVAILABLE ON ORIGINAL EQUIPMENT
2. Electronic Strke Control: 996.00
3. Greaseless Slides: $269.00
4. Quickchange Punch Coupling: $536.00

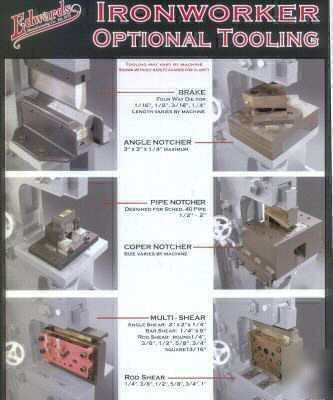

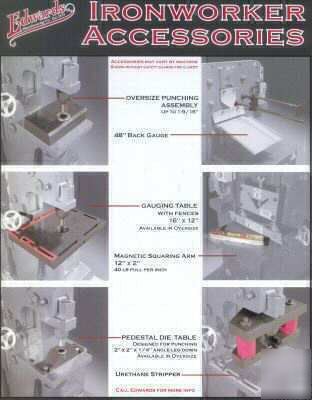

TOOLING ACCESSORIES ( see option photo) E-mail / contact us for Pricing
2. Oversize Assembly to 9/16"
6. Pedestal Die Table-Std to 1-1/16":
12. 1-1/2" Pipe Notching Die
"EDWARDS IRONWORKERS ARE OUR PRIMARY IRONWORKER"
NOTE: F.O.B. point Easton,Pa. or other location
NOTE: PRICING TO REFLECT OUR "PRICE BUSTER SPECIALS". REMEMBER TO PURCHASE YOUR NEW OR USED EQUIPMENT NEEDS FROM A MDNA MEMBER. (MACHINERY DEALERS NATIONAL ASSOCIATION MEMBER) TO LOCATE YOUR LOCAL MDNA DEALER CHECK THE WEB:WWW.MDNA.ORG
PHILADELPHIA CHAPTER MEMBER (MDNA)
