Mueller 700 liter jacketed buffer tank
Mueller 700 Liter Jacketed Buffer Tank 316 Stainless
* Temp-Plate 18 Ga. 304 on .1874 min. 316L
* Heads: Top: .1874 316L ASME F&D
* Inner Btm: .1874 316L ASME F&D
* Outer Btm: #14 GA 304 STD F&D
* Insulation: 2" Kode 25 CPR9525
* 41" Dia. x 34" Straight Side
* 1 1/2" & 1" Inlet and Outlet & Various other openings
* Copy of Orgininal Drawings
* Temp-Plate and Vessel Design Temp. 300
* Design Press. PSIG: 75 Temp-Plate / 60 Vessel
* Design Vacuum IN. HG. : 0 Temp-Plate / FULL Vessel
* Hyrdrostatic Test PSIG: 128 Temp-Plate / 90 Vessel

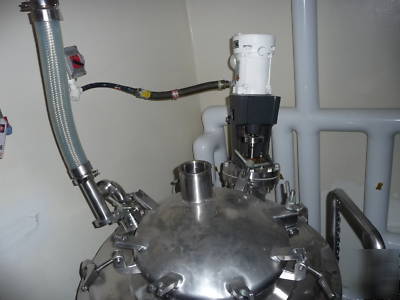

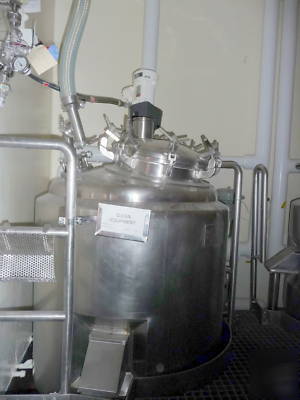

Very clean and in excellent condition. Currently installed at pharmaceutical plant in Los Angeles, CA. Can schedule appointment to view up request.
