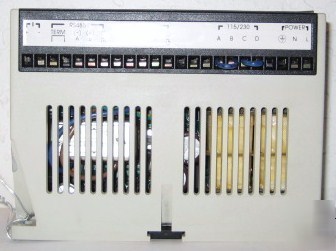

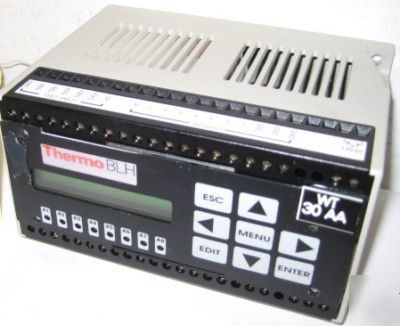

Thermo blh ps-2010W expert weight load cell transmitter
This listing is for an expert load cell weight transmitter / interface device.

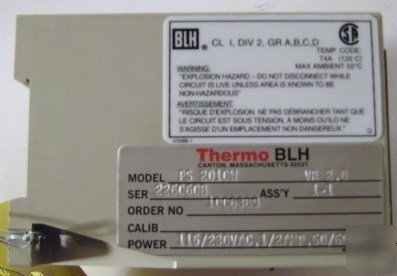

* Make: Thermo / BLH / Baldwin / Vishay (Thermo-Fisher Scientific)
* Thermo Model #: PS-2010-W (PS2010-W) (PS-2010W) (PS2010W)
* Power: 115/230VAC / 1/2A / 50/60Hz
* Compact, full function weight indicator - controller
* DIN Rail mount enclosure
* 700,000 count resolution; eight millisecond sample rate
* Dynamic digital filtering with on-line diagnostics
* 8 open collector discrete setpoint outputs with main (coarse) and dribble (fine) operation
* High speed 120 update -per-second setpoint actuation

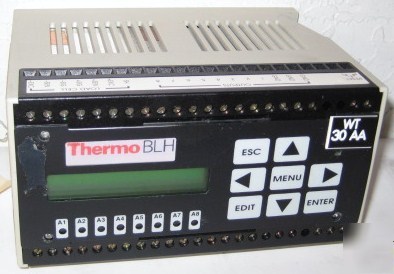

* LCD weight and status display
* Remote inputs functions - zero, tare, gross, net, print
The Model PS-2010W offers high performance for applications that require a small, simple, full function weight transmitter and controller. Packaged much like a mini-PLC brick , the PS-2010W can be DIN rail mounted inside an existing cabinet. The standard RS-485 serial port interfaces easily with PLC/DCS systems using conventional ASCII protocol. A 16 bit resolution 4-20 mA analog current output is available. With 750,000 count resolution at an unfiltered sample rate of eight msec, the PS-2010W is well suited for high speed batch process control, checkweighing, and continuous feeding applications.
Simple setup and calibration is performed using the integral LCD display and keypad assembly or optional Weigh-View PC software. In either case, Plug-n-Weigh technology eliminates the need for test weights in most applications and greatly simplifies the calibration of systems that do require loading. In addition to Plug-n-Weigh , the standard unit also includes Dynamic Digital Filtering and full set point features such as main, dribble, and in-flight compensation.
Eight high speed setpoints provide precision control for time critical applications.
* Resolution 1048576 total counts
* Displayed Resolution 700,000 counts
* Conversion Speed 8.3 to 133 msec (5-selections)
* Displayed Sensitivity 0.05 V per count
* Full Scale Range 3.5 mV/V
* Dead Load Range 100% full scale
* Linearity 0.003% full scale
* Excitation Voltage 10 Vdc @ 240 mA
* Software Filter multivariable up to 10,000 msec
* Temp Coefficient Zero 2ppm/ C, max
* Temp Coefficient Span 7ppm/ C, max
* Step Response one conversion cycle
* Operating Temperature -10 to 50 C (15 to 122 F)
* Storage Temperature -25 to 80 C (-10 to 175 F)
* Humidity 5 to 90% rh, non-condensing
* Active Digits 16 digit alpha numeric .24" high
* Voltage 117/230 Vac 15% @ 50/60 Hz
* Power 12 watts typical, 18 watts max
* Input Impedance 10 m-ohms min
* Noise 0.4 V/count (min. filt. setting)
* Current Selectable 4-20 mA - 500 ohm max.
* Type TTL or dry contact closure
* Functions gross/net, tare, zero and print
* High 4.0 to 24 Vdc (external pull up)
* Type open collector (current sinking)
* Operating Voltage 5 - 35 Vdc
* ON Voltage 1.2 Vdc @ 35 mA
* OFF State Leakage 0.04 A @ 35 Vdc
* Power external supply required
* COMMUNICATIONS (STANDARD)
* Serial RS-422/485 full or half duplex ASCII
* 7 or 8 data bits - selectable odd, even or no parity- selectable
* Baud Rates 300, 1200, 2400, 4800, 9600, or 19200
* Optional Protocol Modbus RTU
* ENCLOSURE MOUNTING DIMENSIONS
* Standard Unit 5.8 x 3.0 x 4.3 in. LWD
* DIN rail or wall mount
* Weight approx 3 pounds
* Single Unit NEMA 4X 11.73 x 9.85 x 6.13 in. LWD with
* Enclosure single DIN rail mounting strip
* Double Unit NEMA 4X 13.7 x 11.8 x 6.5 in. LWD with two
* Enclosure DIN rail mounting strips
* Enclosure (standard) polycarbonate
* NEMA (optional) polyester with stainless steel twist latches
For further information, please visit BLH's brochure at http:// /PDF%20Files/Data%20Sheets/2010W.pdf
This is either brand new or 'lightly used'. It includes it's original packaging. It's also possible that it was used as a demo. Guaranteed to be in proper working order.
