Skf tmtl 1400K thermolaser infrared contact thermometer

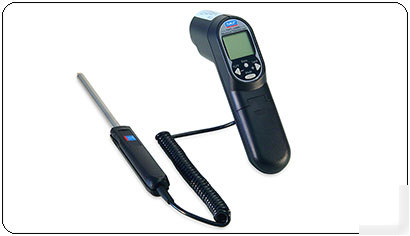

SKF TMTL 1400K ThermoLaser Infrared Contact Thermometer
Advanced Infrared and Contact Thermometer
The TMTL 1400K combines the flexibility of an infrared thermometer with the facility of a contact thermometer. An object's temperature can be measured using an infrared detector or a probe, making it ideal for situations where accurate temperature measurement is necessary and the emissivity of an object is unknown. It is supplied with a K type probe, has variable emissivity, and many different possible measurement modes. It offers solutions for a wide range of applications; such as checking the temperature on reflective surfaces like aluminum and bearings, checking temperature on moving parts and checking temperature where contact should not be made due to possible contamination.
*User selectable variable emissivity between 0.11 and 1.0 when used in conjunction with the probe the correct emissivity can be defined helping to ensure accurate tempurature measurement.
*The SKF temperature probe TMDT 2-30 is included (max. 900 C/ 1652 F), ideal for measuring objects with a high temperature
*Safely measures the temperature of hot, hazardous or hard-to-reach objects
*Wide measurement range using infrared sensor from -60 to 500 C (-76 to 932 F), with probe -64 to 1400 C (-83 to 1999 F)
*Distance/spot ratio of 11:1, better for applications where accuracy is critical
*Ideal complement to other condition monitoring techniques, such as vibration analysis
*Backlit display, making temperature easier to read in dimly lit or dark places
*Temperature reading selection in C or F
*Low power consumption using 2x AAA batteries, more energy efficient
*Auto shut off feature that can be programmed from 1 minute to 1 hour, to optimize battery life
*Robust construction for use in an industrial environment
Temperature range; using infrared -60 to 500 C (-76 to 932 F)
Temperature range; using probe -64 to 1400 C (-83 to 1999 F)
Probe supplied; TMDT 2-30, suitable for use up to 900 C (1650 F)
Probe types; suitable K type probes
* Operation; 0 to 50 C (32 to 120 F) 10 to 95% R.H.
* Storage; -20 to 65 C (-4 to 150 F) 10 to 95% R.H.
Full range accuracy;(Tamb=23+/-3 C) +/-2% of reading or 2 C (whichever is greater)
Displayed resolution; 0.1 C/F from -9.9 - 199.9, otherwise 1 C/F
Emissivity variable; 0.1 - 1.0
User selectable backlit display; on/off
User selectable laser pointer; on/off
Measurement modes; max, min, avg, differential, probe/IR dual temp modes
Alarm modes; high and low level alarm level w/warning beep
Laser wavelength; 630 - 650 nm
Dimensions; 175x72x39mm (6.9x2.8x1.5 in)
Battery; 2 x AAA Alkaline type IEC LR03
Battery lifetime; 140 hrs w/laser and backlight off. Otherwise 18 hrs
* IR Mode; auto after 60 sec after trigger released
* Probe Mode; auto after 12 minutes
EMC standards; EN 61326:1997+A1+A2
Laser standards; CFR 1040-10 / 60825-1
