Full set pad printing inkwell printer material package

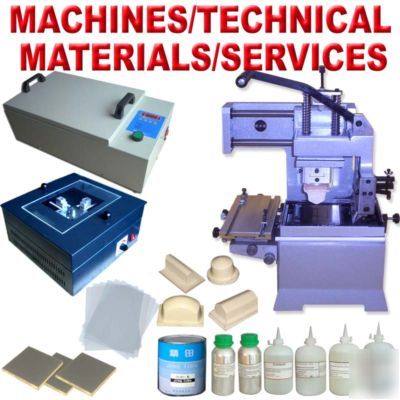

Full Set Manual Pad Printer with Inkwell Start up Kit
Pad printing is a printing process that can transfer a 2-D image onto a 3-D object. This is accomplished using an indirect offset (gravure) printing process that involves an image being transferred from the printing plate (clich ) via a silicone pad onto a substrate (surface to be printed). Pad printing is used for printing on otherwise impossible products in many industries including medical, automotive, promotional, apparel, electronics, appliances, sports equipment and toys. It can also be used to deposit functional materials such as conductive inks, adhesives, dyes and lubricants.
Physical changes within the ink film both on the clich and on the pad allow it leave the etched image area in favor of adhering to the pad, and to subsequently release from the pad in favor of adhering to the substrate (material being printed).
The unique properties of the silicone pad enable it to pick the image up from a flat plane and transfer it to a variety of surface (i.e. flat, cylindrical, spherical, compound angles, textures, concave surfaces, convex surfaces).
Pad printing is used for printing on various substrates like Plastics, Metals, Glass and Ceramics, Paper and Cardboard, Leather. However, it is primary used in places where the printing area is small and / or the contour or surface of the object is not flat or hard to reach by other printing process.
Manual Single Color Pad Printer with Inkwell
High flexibility to adapt to different applications
Simple adjustment of the pad holder
Compact inkwell to ensure less ink wastage
Precision maintained in repeat jobs
Sturdy construction with rational design
Max printing area: 3"x5"(8 13cm)
Size of steel plate: 4"x4"(10 10cm)
Max length of printing stock: 6"(15cm)
Horizontal travel: 6"(15cmm)
Upright travel of rubber head: 2.5"(6cm)
Machine size: 13.8"x8.2"x19.3"(35x20.9x49cm)
Package dimensions: 17.3"x10.2"x18.9"(44x26x48cm)
Steel plate coating machine can coat photosensitive liquid evenly on surface of steel plate or steel blade by the centrifugal effect caused by high-speed rotation. It is one of the important equipments in the process of plate-making and a necessary tool for making high quality plate.
Coating by centrifugal rotation, even and flat.
With special designed scale, it is easy to install steel plate, which extraordinarily solve the departure in installing.
Collocated with speed adjustable motor, you can adjust speed of the motor with potentiometer to control thickness of coating.
With special designed + construction,it is more saving of power and easy to clean.
Equipped with handle and protection cover, it is safer to operate.
* Suitable steel plate size:3.5"-8.66"(89x220mm)
* Machine size: 13.6" X 13.6" X 7"(345x345x175mm)
ASC 17X7.7 exposure unit is an equipment used for small area exposure, especially suitable for exposure of small size photopolymer plate in hot foil stamping and steel plate in pad printing.
Digital Auto-Off timer with Auto-Repetition
12"x7.7" exposure capacity
Heavy duty extruded steel frame
User-friendly desktop design with long-term life span
* Exposing area: 12"x7.7"(310x200mm)
* Light power: 72W four 18W UV fluorescent bulbs )
* Machine size: 19.7"x11"x6.3"(500x280x160mm)
* Package dimensions: 22.4"x13"x8.9"(568x333x225mm)
These clich making liquid allows the pad printer to take his film positive artwork and make inexpensive short run clich s.
These pad printing steel plates use high quality steel,this steel is made to exacting specification for dimensional accuracy, parallelism, flatness and super hardened to ensure accurate, extra long lasting plate life. Produced for the pad printing industry,thin plate is appropriate for our company' closed system and thick plate for open system with medium volume applications,or you can do some combination.
* Sophisticated structure to be etched fine image both streak and halftone
* Size:3.9" X 3.9" X 0.39" 100*100*10mm
Inkjet/Laser Transparency Film
ASC Non-Waterproof Ink-Jet Film is a specially coated,clear film that absorbs quick drying inkjet ink, and controls the shape of fine lines and half tones.This inkjet film is only coated on one side. Print on the coated (matte) side of the film! If you print on the glossy uncoated side, the ink will not dry because it is not absorbed by the coating.
For the unique high-tech solution, they can not be conglutinated with each other when folded together. The image is well-resisting and suitable for storage.
Note 1: This film also can be used in your laser printer.
Note 1: Your wet finger will stick to the coated side.
Note 2: Printing side is the non-smooth side.
PVC ink is the most popular ink used in pad printing, giving beautiful colors and designs to yourfavorite t-shirts and other items. It is also used for industrial clothing, onitems such as dotted and anti-slip gloves. PVC ink requires fine particle resinand fast gelling at low temperatures,excellent opacity, qualities with goodprintability and anti-blocking. Finished printing features with excellentflexibility and weather resistance.
Rubber head is a carrier which transfers the patterns on the steel plate onto the substrate surface.These pad printing rubber heads is with high print times and abrasion resistance, without any inpurities, with good printing effects,permanent and durable.
* 1 set of Manual Pad Printer
* Pad Printing Liquids: Oil Cleaning 500ml, Photosensitive Liquid 250ml, Developing Liquid 250ml, Etching Liquid 250ml, Ink Thinner 500ml, Ink Cleaning 500ml.
* 5 pcs of Inkjet/Laser Transparency Film
* 3 vector graphic art CDs listed in our store as gift
Details of the above machines and materials, please view individual item listed in our store
