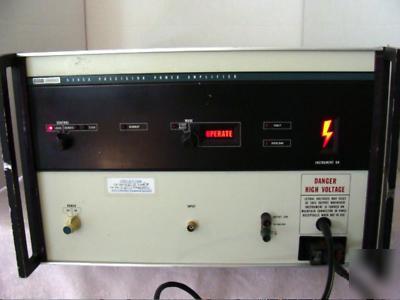

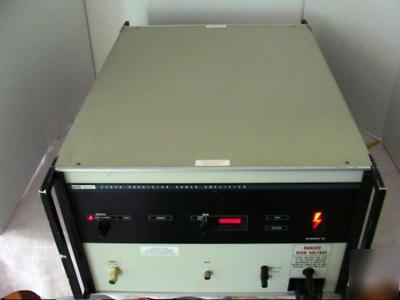

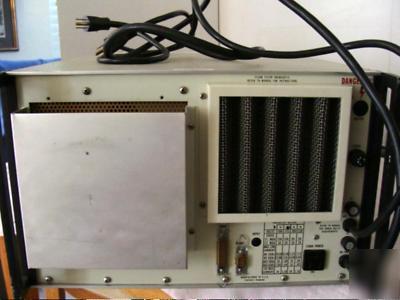

Fluke 5205A precision power amplifier/ calibrater
The Fluke 5205A Precision Power Amplifer is a DC coupled programmable inverting amplifer with a fixed gain of 100. Designed as a precision calibration amplifer, the 5205A is also useful as a general-purpose amplifier for a wide range of waveforms for dc to 100 kHz. If your lab has a 5200A or a 5100 and you don't have the 5205A Precision Power Amplifier, you're not fully utilizing the versatility of your system.
FEATURES: *** DC coupled, programmable inverting amplifier *** Fixed gain of 100 *** Extends the range of the 5200A, AC Calibrator, to 1200V rms *** Extends the load, voltage range, and frequency from 100 V (at 1 kHz) to 1100 V (at up to 50 kHz) for the 5100 series Calibrators Precision Instrument *** 420 ppm midband amplitude uncertainty at 1000 V rms *** 200 ppm midband six-month stability *** Operates as an independent amplifier from DC to 120 kHz *** Provides DC output voltages to 1500 V and AC output voltages to 1200 V rms at current levels of 200 mA rms.
FLUKE PRECISION 5205A MEASUREMENTS/FEATURES: *** Exten range-5700A,5100B,5200A *** Output voltage - 1100V, 1500 d *** Maximum output Power 200 watts *** Fully programmable *** 420 ppm midband amplitude *** V200 ppm midband 6 mo stability.
For more information: http:// /DataSheet/FLUKE/FLUKE_5200A81405.pdf
