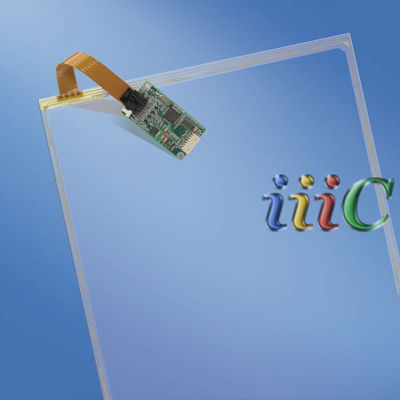

3M capacitive 17" multi-touc​h screen+ usb controller
3M Surface Capacitive 17" Multi-Touc h Screen + USB Controller
* Input Method: Finger input
* Accuracy*: Reported touch coordinates are within 1.0% of true position (based on the diagonal dimension of the screen) within the precision area when linearized and used with MicroTouch EX II Series Touch Controllers
* Resolution: Touch screen resolution defaults to settings in the electronics and software, generally 1024 x 1024, but capable of 16K x16K when used with EX II electronics
* Linearization: Factory linearization values are stored in the attached controller, represented in a 2D bar code, or in the touch screen NOVRAM when present
* Light Transmission**: 91.5% light transmission ( 1.5%)
* Surface Finish: ClearTek II hard coat with optimal anti-glare properties. Scratch resistant top coat provides smooth, easy glide touch surface
* Minimum Contact Requirement: 5.4 ms for finger input with EX II series controller
* Glass Thickness: 3.18mm ( 0.25mm) typical. (Glass only, not including flexible tail connection; reference touch screen drawing for details.)
* Display Size Supported: 6.4" to 32" diagonal (4.3, 16:9, 16:10)
* Surface Scratch Hardness: A Mohs pick with a hardness rating of 7 or higher is required to induce a scratch which will cause a functional failure. Functionality unaffected by severe abrasion per MIL-C-675-C, exceeding number of specified cycles. Functionality unaffected by 10,500 grams of force per Balance Beam Scrape Adhesion Mar Tester with loop stylus
* NEMA Rating: NEMA sealable
* Gasketing: Complete water-resistant seal obtainable with polyethylene gasket. Please consult ClearTek II integration guide for further details
* Mounting: Please consult MicroTouch ClearTek II Integration Guide for specific mounting instructions.
* Cleaning: Water, isopropyl alcohol, or similar non-abrasive cleaners
* Surface Obstructions: Touch screens operation withstands surface contaminants such as, dirt, dust and grease
* Chemical Resistance: ClearTek II is highly resistant to a variety of solvents, acids, and household chemicals in accordance with ASTM-D-1308-02e1 and ASTM-F-1598-95 (reapproved 2002)
* Liquid Resistance: Liquids on screen do not impede touch screen performance
* Operating Temperature: -40 C to 70 C for the touch screen
* Humidity: Up to 90% RH from 0 C to +35 C, non-condensing
* Communications Protocol: USB Rev 1.1 (compatible with USB 2.0)
* Optional Components: Part: 7312256 96" (2.4 m) Cable, Pearl; Part: 7315050 23" (0.58m) Cable, Pearl
* Dimensions: 1.30" x 2.55" x 0.45", 33.0 x 65.0 x 11.4 mm
* Touch Screen Connection: 5-pin locking AMP
* Mean Time Between Failure (MTBF): > 700,000 hours
* Electrostatic Discharge (ESD): 8KV Contact, 27KV Air
* Relative Humidity: 0 to 95% non-condensing at +36 C
* Storage Temperature: -50 to +85 C
* Operating Temperature: -40 to +70 C
* Power Requirements (typical): 5Vdc 5% 75 mA
* Regulatory: UL/cUL, FCC-B, CE, VCCI, AS/NZS 3548, RoHS
* Driver Support: MT 7 (Win 2000, XP, XPe, WEPOS, CE.net 4.0/5.0, Linux, TouchWare (Win 95, 98, NT)
