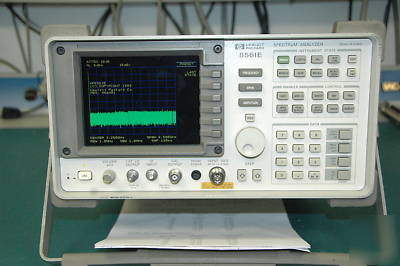

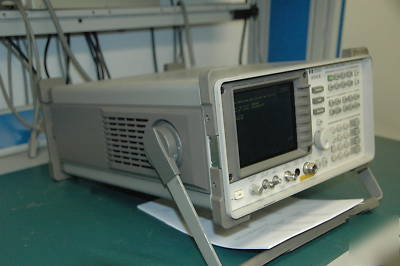

Hp 8561E spectrum analyzer 6.5GHZ color display cal'd
Color Display, Calibration Certification and Thirty Day Warranty
The 8561E Spectrum Analyzer offers the measurement capabilities and performance traditionally found only in larger, more expensive benchtop analyzers. The unit combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions.
* Frequency range: 30Hz to 6.5GHz
* Features synthesized tuning for drift-free, accurate measurements
* Noise sidebands typically less than -115 dBc/Hz at a 10 kHz offset from 1 GHz
* More than 100 dB of spurious-free third-order dynamic range
* Digital resolution bandwidths range from 1 to 100 Hz
* Analog filters cover the resolution bandwidth range from 300 Hz to 2 MHz
* Fully meets MIL-T-28800 specifications for ruggedness
