5-port 15 ghz 7A4 waveguide microwave attenuator ++++++
5-Port 15 Ghz 7A4 Waveguide Microwave Attenuator 96214 858096 With ~20 sectons of waveguide, 5 waveguide attenuators, 3 waveguide switches, other waveguide components and control electronics.
Waveline Inc. type 70595 and 70596 waveguide sections.

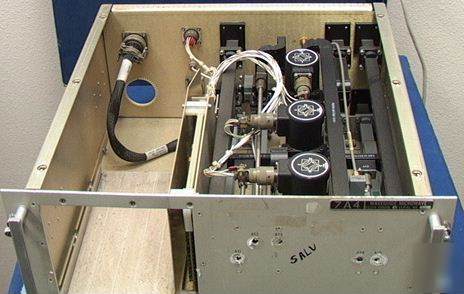

The 3 waveguide switches are most visible in the image above.
Looks like there are 2 attenuators labeled AT1. All the attenuators have remote shafts so they can be adjusted from the front of the box.
Transco Trans Latching 28VDC waveguide switch PN 82152 3d00200-10 12.4 to 18 GHz
We don't know what the component above is. Can't see the label.
Also don't know what the component in the image below is.
The waveguide cavity measures about 15.75mm by 7.9mm on these items.
Might be just what you need for your complex 12 to 18 Ghz waveguide attenuator application.
Condition looks good vintage-a bit dusty. We have no idea what went in the hole on the left.
