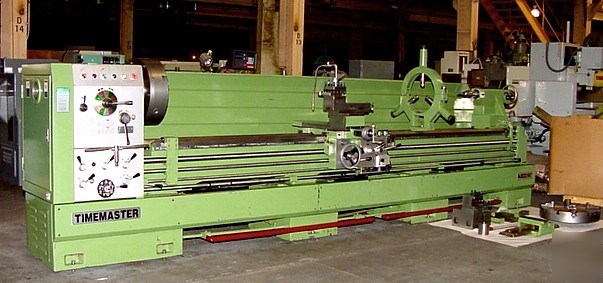

Late 30"/38" x 160" timemaster gap bed engine lathe
LATE 30"/38" x 160" TIMEMASTER GAP BED ENGINE LATHE
30"/38" x 160" TIMEMASTER GAP BED ENGINE LATHE
MODEL: N-3022, S/N: 99056, NEW: 1999
SWING OVER BED ........................... 30-1/4"
SWING OVER CROSS SLIDE ................... 22"
SWING IN REMOVEABLE GAP .................. 38-15/16"
LENGTH OF GAP ............................ 18"
DISTANCE BETWEEN CENTERS ................. 160"
WIDTH OF BED ............................. 15-3/4"
SPINDLE SPEEDS (12) ...................... 13 - 1000 RPM
SPINDLE NOSE CAMLOCK ........................ D1-11"
SPINDLE TAPER ............................ #5MT
HOLE THRU SPINDLE ........................ 4-1/16"
WEIGHT CAPACITY BETWEEN CENTERS .......... 6,000 LBS
THREADING - INCH (36) .................... 2 - 28 TPI
THREADING - METRIC (65) .................. .08 - 14
TAILSTOCK TAPER .......................... #5MT
TAILSTOCK QUILL DIAMETETER ............... 3-1/8"
QUILL TRAVEL ............................. 11"
APPROX WEIGHT ............................ 12,500 LBS
APPROX DIMENSIONS ........................ 260"L x 60"W x 70"H
INDUCTION HARDENED & GROUND BEDWAYS
