New hq key lock power on off switch 1NO+1NC #2109

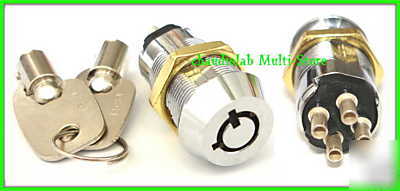

A New High Quality Key Lock Power On Off Switch
Mounting hole diameter : 0.75" / 19 mm
1 Normal Close + 1 Normal Open Contact
Terminations: Soldering (Pin Terminal)
* Zinc alloy die cast housing and cylinder
* Bright chrome-plated standard
* Steel made tubular keys, nickel plated
* Key may be withdrawn in one or both positions
* Silver-plated contacts and terminals
* Contact rating: 4A/125VAC, 2A/250VAC
* Contact resistance: 10m ohms maximum
* Insulation resistance: 500M ohms minimum (500VDC)
* Dielectric strength: 1500VAC, 1 minute
