Domino solo 5 auto ink jet printer

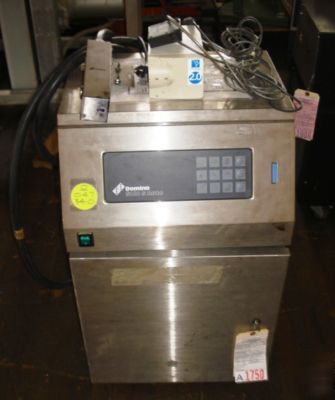

Domino Solo 5 Auto Ink Jet Printer
Includes Smarteye Tritronics Metal SD Photo Fiberoptic Eye
Includes Powervar Power Conditioner
Unit in Good Working Condition
The following information was taken fom the the Domino web site. Our unit is older and the model has changed but the factory indicated that the Domino Solo was replaced by the A-Series and is similar to the replace Solo.
The range of Domino A-Series continuous ink jet printers offers proven performance and reliability from basic coding through to specialist applications and those requiring networking capabilities and the highest print quality in the harshest production environments.
Domino A-Series continuous ink jet printers are renowned for their high quality print capability, excellent reliability, minimum down time and ease of use. In conjunction with Domino's ink range, including Advanced, Specialist and Custom inks, the A-Series range provides quality, reliable codes in an easy-to-use package.
* Automatic self-cleaning print head guarantees print nozzle stays unobstructed, even on frequent start-stop production lines
* IP rated units offer reliability in a range of harsh environments
* Non-contact printing offers high quality coding onto uneven and flexible surfaces
* Traverse systems enable greater flexibility when coding across the product flow www.traverser.co.uk
Whether running continuously or shutting down
daily, the A-Series plus prints consistently and reliably and requires minimal operator intervention.
The patented nozzle seal provides unrivalled start/stop performance in conjunction with automatic head cleaning. In addition the intelligent ink system ensures that consumable changes are planned and carried out by operators without disrupting production.
Continuous Ink Jet (Small Character)
Domino is the undisputed industry leader in continuous ink jet printers (CIJ) and has set the industry standard for print quality and versatility. Domino is the preferred supplier of many OEMs and MNCs, with the A-Series now selling into over 120 countries.
Continuous ink jet technology uses electrically charged ink droplets to create high quality characters based on a grid formation. Using a wide range of inks that have been developed for specific industry applications, the A-Series can print text, graphics and variable data directly onto food, glass, plastic, metal, rubber and other substrates.
CIJ Technology animated GIFThe A-Series print head contains an ink drop-generator with a vibrating drive rod. This creates ultrasonic pressure waves in the ink, breaking up the stream of ink into individual droplets. When this stream of droplets falls between a set of electrodes, individual droplets are intermittently charged. The size of the charge given to each droplet determines how far it will be deflected out of the stream when passing through the deflector plates and therefore its placement on the product.
By placing a collection of these droplets close together, a variety of characters are printed as the product passes the print head. Droplets not deflected out of the stream are re-circulated to repeat the process.
* Superior print head technology provides better drop placement and print quality
* High speed printing that keeps up with the fastest production environments
* Non-contact printing enables uneven and flexible surfaces to be coded
The Domino ink range has been engineered for
maximum reliability and performance with A-Series printers, ensuring that each ink/printer
combination has been fully tested and will provide known levels of performance in the field. The range includes Advanced, Specialist and Custom Inks, ensuring that whatever the application there is a well engineered Domino ink to support it.
The Advanced ink range is a series of high performance, general purpose inks for use in everyday environments. In addition the Advanced plus inks provide even more robustness for very demanding environments.
The Specialist range includes fluids for highly specialized applications such as: thermochromic inks for canning applications; invisible fluorescent inks for covert coding; and food grade inks.
