Christen model 100A precision drill grinder

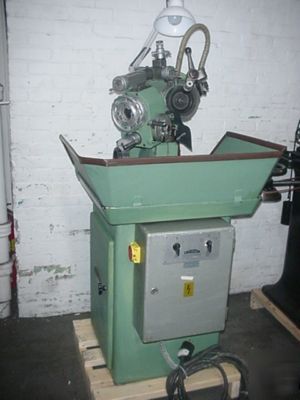

Christen Model 100A Precision Drill Grinding Machine
referencing Christen 100A Precision Drill Grinding Machine
Christen Model 100A Precision Drill Grinding Machine
Technical Specifications: * Serial Number: 3243
* Grinding capacity: 1 to 32mm (.004" - .125")
* Tools with taper shank: #0, 1, 2, 3 Morse
* Number of cutting edges: 2,3,4,5,6,10,12,15,20,30,60
* Point ange: 60 - 160 Degrees
* Lip clearance angle: up to 15 Degrees
* Angle of chisel edge to cutting edge: 55 Degrees standard
* Maximum stop length: 50mm (2")
* Cup wheel size: 150/82mm interior/exterior diameter x 40mm wide x 50mm bore
* Wheel head motor: 0.80 KW
* Wheel head speed: 3300 RPM
* Machine net weight: 250 KG (550 Lbs.)
EQUIPPED WITH: * Work spindle
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email ****@goldmachinery.com referencing Christen drill grinder.
We will partially crate this item for $275.00 or we will skid and cover when possible for $145.00. As always we will load your truck from our dock at no extra charge. This item may also be transported via flat bed truck. We will assist in rates if requested.
