Spectramass/asi daq dataquad rga residual gas analyser

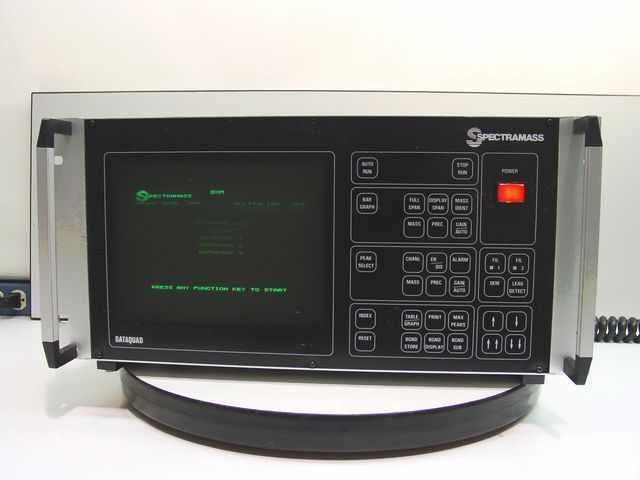

Spectramass/ASI DAQ Dataquad RGA Residual Gas Analyser
Spectramass DAQ 3.2 Dataquad RGA Residual Gas Analyser Controller
* Resolution: 10% valley between equal peaks.
* Minimum detectable partial pressure: 2x10-11mBar Faraday, 2x10-13mBar SEM
* Minimum detectable total pressure: 1 x 10-11 mBar.
* Maximum operating pressure: 1x10-4mBar Faraday, 1x10-5mBar SEM
* Bake-out temperature: 250C recommended. 350C maximum
* R.F frequency: 1.84Mhz std.
* R.F. amplitude: 800V p/p at maximum mass
* Power requirements: 105/115/220/240 volts 50/60Hz 50Watt
* Integral VDU: 9" monochrome
