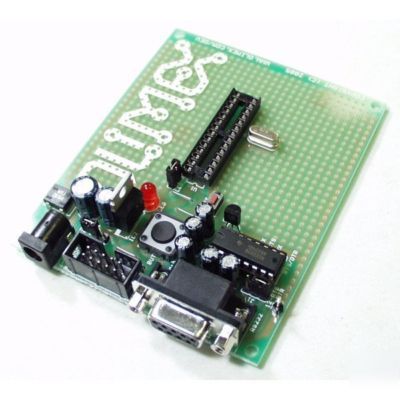

Sparkfun-olimex 28 pin avr development board dev-00029
Prototype board for 28 pin AVR microcontrollers with with power supply circuit, crystal oscillator circuit, RS232 port, reset IC, status LED, and 10 pin STK ICSP port.
* STK200 compatible ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
* 8 MHz crystal on socket (user replacable)
* General purpose push button
* Status LED connected to PC5 via removable jumper
* DIL28 microcontroller socket
* Extension pin headers for each uC pin
