Invertiweld INV200 ac/dc tig welder
PLEASE DIRECT ANY ENQUIRIES TO MY MOBILE NUMBER (***)-375-6500 9AM-7PM PST OR ****@plasmatigandmig.com

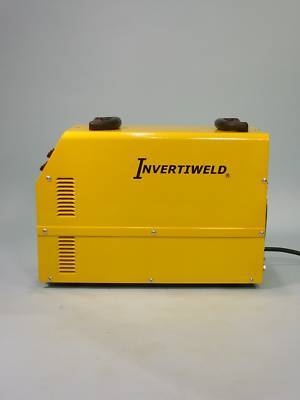

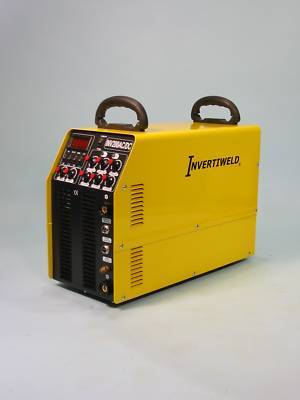

INTRODUCING THE INVERTIWELD INV200 AC/DC COMPACT INVERTER TIG/ STICK WELDER, MANUFACTURED IN MIANLAND CHINA BY NANTONG ELECTROMECHANICAL CO., LTD.
A VERY HIGH QUALITY IGBT INVERTER WHICH OFFERS PERFORMANCE AND CONSTRUCTION EXCEEDING THE MILLER DYNASTY DX, AND OTHER TIG INVERTERS DOMESTIC OR IMPORTED.

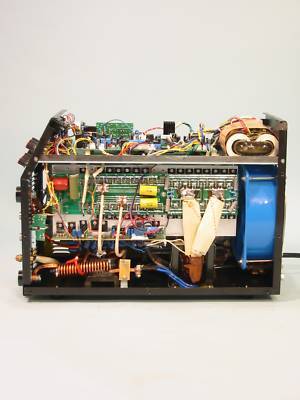

HIGH QUALITY EUROPEAN INFINEON IGBT TRANSISTORS PROVIDE THE ROBUST HEART OF THIS MACHINE, AND THE SAME DUTY CYCLE AS THE DYNASTY. I HAVE USED A DYNASTY ON THE JOB AND THE INV200 AC/DC IS EVERY BIT IT'S EQUAL
THIS MACHINE OFFERS INCREDIBLE PERFORMANCE AND ROCK SOLID ALL METAL HOUSING, (.065" THICK) AND FRAME, (.100" THICK), CONSTRUCTION, SECURED WITH THREADED/ TAPPED FASTENERS AND MOST IMPORTANTLY- NO FRAGILE PLASTIC CASE BEZELS OR INTERIOR PARTS,

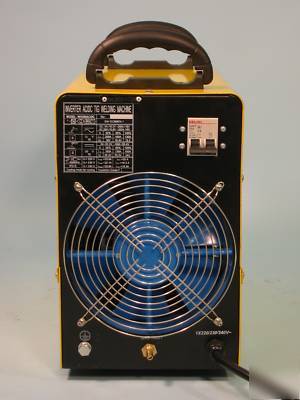

A LARGE HIGH PERFORMANCE COOLING FAN AND MASSIVE ALUMINUM HEAT SINK ASSURES COOL OPERATION, HIGH RELIABILITY, AND GENEROUS 35% FULL AMP DUTY CYCLES.
THE INV AC/DC OFFERS HIGH DUTY CYCLES, COMPACT SIZE, LOW WEIGHT, LOW CURRENT DRAW, INCREDIBLE AC WELDING PERFORMANCE, AND A SMOOTH, STABLE DC ARC.
EVERY MACHINE RECEIVES A FULL COVERS OFF IN HOUSE QUALITY CHECK, AS WELL AS A POWERED UP COMPLETE WELD TEST REGIMENT, GUARANTEED NON DOA 30 DAY WARRANTY WITH A NO HASSLE 2 YEAR WARRANTY AS A OPTION
NO ONE ELSE INVESTS THE TIME THAT WE DO IN Q.C., TESTING, AND SAFE, SECURE PACKAGING, RESULT: NO UNPLEASANT SURPRISES.

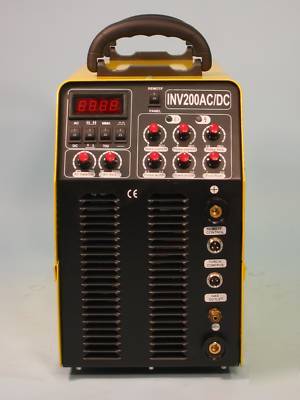

COMPLETELY ADJUSTABLE WELDING PARAMETERS UTILIZING EASY TO USE ANALOG CONTROLS MAKE THIS MACHINE A PLEASURE TO USE AND READY TO TACKLE ADVANCED TIG WELDING IN STEEL OR ALLOY MATERIALS.
TYPE AND RANGE OF ADJUSTMENTS:
1)Base Amp Range: (tig / stick): 5-200A / 10-160A
2)Pulse Amp range: (tig): 5-200A
3)Pulse Frequency: (How many pulses per second): 0.5-25 (hz.)
4)Pulse Width: (The ratio of the pulse current time to the constant base current):10%-90%
5)AC Frequency: (How fast the AC square-wave changes polarity each second): 50-250 (hz.)
6)AC Balance: (Oxide removal/ electrode positive vs. penetration/ electrode negative): 30%-70%
7)Gas Post Flow: (How long shielding gas continues to flow after welding ceases): 1-25 (sec.)
8)Downslope Time: (Crater fill time for weld current to go to zero when using trigger switch) 0-10 (sec.)
9)Trigger Latch Modes: (Operating mode of trigger switch): 2T/ on-off, 4T/ on-lock-off
10)Remote modes: (selection of operating control): Panel/ trigger switch, Remote/ foot pedal
11)TIG welding modes: AC, DC, AC pulse, DC pulse
12)Basic Welding Modes: tig/ stick
BENEFITS OF THE RANGE OF MACHINE ADJUSTABILITY:
You can weld steel, stainless, aluminum, copper, brass, etc.
Extremely thin material is easily conquered using the pulse functions.
High frequency square wave weld current allows use of pointed tungstens even in AC delivering control and stability previously unavailable.
Adjustable AC frequency allows increased penetration, or broad weld zone.
Adjustable AC balance allows optimum ratio of cleaning to penetration when welding alloy.
Selection of torch trigger control allows easy welding on the run, and while maneuvering tight workspaces or climbing.
1)Duty Cycle @ 40 deg. cel. : (percentage of a 10 minute cycle that continuous welding is possible at a specific amperage and temperature): % / Welding Mode/ Welding Current
100%/ TIG /160, 35% /TIG/ 200 100%/ STICK/100, 60%/ STICK/ 130, 35%/ STICK 160
HIGHER DUTY CYCLE AND HIGHER AMPERAGE WELD CURRENT MACHINES ARE AVAILABLE, PLEASE ENQUIRE.
2)Input Current: 220-240 Volts single phase @ 20 amps
3)Maximum material thickness: (dependent on weldment mass, joint preparation, AC frequency setting, and pre-heating temprature if appropriate): 3/8"
4) Size/ Weight: 20"X9"X15"/ 57lbs.
1) 12.5' 250 Amp gas cooled CKW/ WELDCRAFT style torch for heavy work, utilizing standard locally available consumable parts
2) Torch consumable parts kits for torch.
5) Torch mounted on/ off trigger.
8) 30 DAY GUARANTEED NO DOA WARRANTY (1-2 year extended warranty available at extra cost)
8) Commitment to after sale support and service.
OPTIONAL EXTRA COST ACCESSORIES:
1) Patented USA mfg. HIGH SENSITIVITY foot pedal, same as supplied with Lincoln and ESAB welders.
2) Exclusive "FINEAMP" PEDAL CONTROL, which lets you precisely adjust maximum foot pedal amps from 5 amps DC and 15 amps AC with weighted sensitivity in sub-100 amp range.
5) AC/ DC Tungsten electrode package.
5) 1-2 year parts and labor extended warranty on welder.
1.5% GOLD BAND LANTHIATED TUNGSTENS REQUIRED FOR PROPER AC PERFORMANCE
USE OF HIGH CELLULOSE STICK ELECTRODES AS 5P AND 6010 IS NOT POSSIBLE WITH THIS INVERTER,
SPECIALLY DESIGNED MACHINES ARE AVAILABLE FOR THIS STICK WELDING APPLICATION, PLEASE ENQUIRE.
ALL TEXT COPY AND PRODUCT IMAGES COPYRIGHT 2009 CLM STUDIO, ALL RIGHTS RESERVED.
INVERTIWELD IS A REGISTERED TRADE NAME WITH THE UNITED STATES PATENT AND TRADEMARK OFFICE.
PRODUCT SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
