Edic-mini plus A9 1200H fresh idea - voice recorder spy

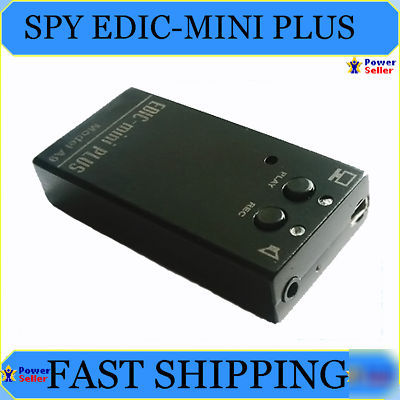

Fresh idea Edic Mini PLUS A9 1200Hr Digital Voice Recorder
Recording during almost 100 days this beats our own records among audio recorders of this size. The new A9 consumes less current, than its predecessors, which provides longer autonomic work!
+GIFT - External Microphone for Edic-mini PRO, Edic-mini PLUS
The Edic-mini Plus, miniature digital recorder, is intended for professional voice recording with an opportunity to play the recording back, using the headphones. Then the recordings can be uploaded on to a computer
High quality recording because of 16 bit audio codec, providing more exact signal digitizing.
Built-in memory size 150-2400 hours, almost 100 days :) of recording, which is all-time high index for recorders of such size.
Low power consumption increases autonomic work, that is continuous information recording. Now you can record with fully charged rechargeable battery even longer: up to 210 hours, more then 8 days.
Opportunity to listen to the recordings with the headphones.
Frequency band on computer: 100-6000 Hz; in headphones: 100-6000 Hz.
The recorder is performed in hard metal case and can be used a trinket.
New function: time marking opportunity to listen and transfer to PC of the data with marked beginning and end of the recording. E.g., if you know that the most important information was recorded from 15.00 till 17.00, you may easily mark out the needed passage. Such function is very convenient when working with recorders with large capacity indexes.
When connected to a computer the recorder is defined as removable disk with RecManager and user manual on it. RecManager is activated directly from the removable disk and the recorder is ready for work with computer.
A9 digital recorder is a professional device that provides high quality voice recording on to a built-in Flash memory. Recorded messages can be played back with headphones and saved as standard audio files on to a computer hard drive. The recorder can be used for audio recording and as a flash drive for saving files of any formats.
Supplied Software (available on the recorder's built-in Flash memory) allows:
* To save recorded messages on a computer hard drive as standard audio files
* After saving recordings on a computer hard drive, to restore pauses that were compressed
* To set the recorder's parameters
* To administrate the recorder's operating
* To update the recorder's software
* For the recorder's power supply use the Li-Pol rechargeable battery.
* dimensions 11x27x56 mm or 2.20x1,06x0,43 inch;
* recording from 300 hours depending on the amount of memory;
* recording through the built-in microphone at a distance of 7 ... 9 meters;
* temperature range from 0 C to +50 C;
* maximum bandwidth: when you play on a PC: 100 ... 6000 Hz when played through headphones: 100 ... 3800 Hz;
* sampling frequency sound: 16000, 8000, 4000 Hz;
* signal to noise ratio: -72 dB;
* Voice activation system (VAS);
* 8 user settings for the recording settings (profiles);
* possibility of arbitrary removal of user accounts;
* Indication of battery condition;
* continuous recording time from a fully charged battery (with the sampling rate of 8 kHz, no compression) up to 230 hours;
* recording mode VAS in the acoustic signal below the threshold - up to 430 hours;
* in standby mode, a voice recorder can go without charging more than a year;
* battery is charged from the USB-port.
Edic-mini PLUS A9- 300 hour - 460$
Edic-mini PLUS A9- 600 hour - 629$
Edic-mini PLUS A9- 1200 hour - 789$
The table shows the corresponding index in the model designation recorder, recording time and capacity of flash-memory
Password protection. When using password protection, only an authorized user has access to the recorder's data and settings. Every recording made with the audio recorder is provided with time and date, giving it a digital watermark which allows to detect the recorder, which made the recording and if the recorded file was modified.
The recorder can start recording automatically - the recorder has two timers: one-time timer (the beginning and the end of he recording are to be set) and daily timer (time and date of the beginning and end of the recording are to be set) .
The DVR has Voice Activating System (VAS), which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made. .
The recorder can work as a Flash drive, which allows to save and download / upload any data . It is possible to use the recorder for recording and as a Flash drive simultaneously. The amount of memory, assigned for the Flash drive can be set in the recorder settings.
The recorder has a control button. The recorder's LEDs provide the indication of the recorder's operating modes .
The Date label is a new function that allows to print the time of the beginning and the end of the recording on the recorded data. For instance, if you know that the data were recorded between 3 pm and 5 pm, you will easily find this recording. This function is especially useful when your recorder has a big memory capacity .
