4 pc pipe tubing tube swag swaging expander tool set

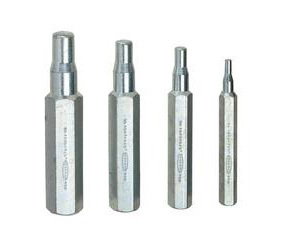

4 piece swaging tools are used as an economical method for joining copper tubing by eliminating the need for a coupling. Once the swage has been made, the tubes can be easily sweated together with solder. 4-Piece Swaging Set gives you four of the most popular sizes, ranging from 1/4 to 5/8 . The hex-shaped body prevents the tool from rolling and limits the potential for binding in the tube. Made from heat-treated alloy steel for maximum durability. Part #RM154ST
Four popular sizes 1/4 , 3/8 , 1/2 , 5/8
Eliminates the need for a coupling
Made from heat-treated alloy steel
Comes in a convenient vinyl pouch
1. Place the tube in a flaring bar with 5/8 to 1 exposed and camp into a vise
2. Insert the swaging tool of appropriate diameter into the tube.
3. Keeping the tool straight upright, strike the end of the tool with a ball-peen hammer
4. Turn the swaging tool a quarter turn after each strike to prevent binding.
5. Continue striking and turning tool until swage is formed.
NOTE: Only use a ball-peen hammer to strike the swaging tool.
