Isomet 535C-l acousto-optic modulator driver

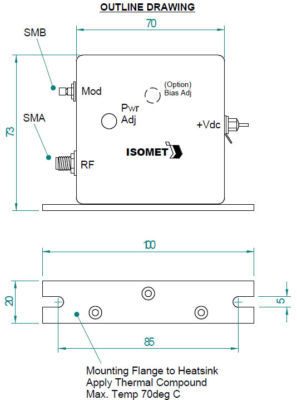

Isomet 535C-L Acousto-Optic Modulator Driver
Operating Supply: 9.0VDC (24VDC absolute maximum)
Maximum Power Output: 0.8W at 1.0V Video Input
Video Input range: 0.0V to 1.0V (min to max RF)
2nd Harmonics at 0.3W: >35 dBc
3rd Harmonics at 0.3W: >35 dBc
Modulation ON/OFF ratio: >40 dB
Package includes the following SMB plug to SMA jack adapter connector...
Manufacturer Part Number: 1060498-1
Digi-Key Part Number: A34414-ND
Datasheet: http://search.digikey.com/scripts/DkSearch/dksus.dll?lang=en&site=US&WT.z_homepage_link=hp_go_button&KeyWords=a34414&x=0&y=0
