36" swg 120" cc poreba TPK90A/3M engine lathe, inch/met

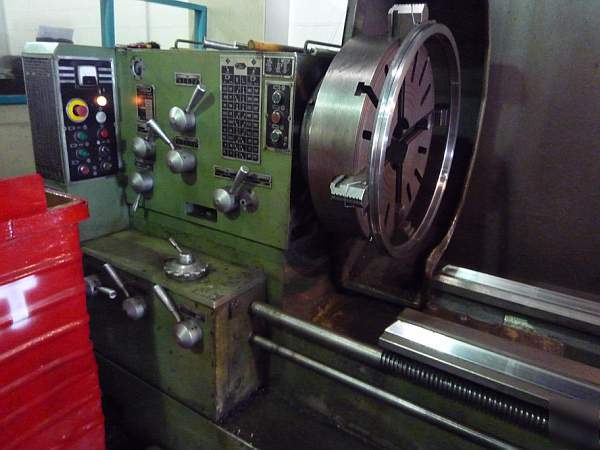

36" Swg 120" cc Poreba TPK90A/3M ENGINE LATHE, Inch/Met
36" Swing 120" Centers Poreba TPK90A/3M ENGINE LATHE, Inch/Metric,Gap,Taper,Heidenhain DRO,4-Jaw,S
36 X 118 POREBA HEAVY DUTY LATHE
MODEL: TPK90A/3M, S/N: 0207-036-07, NEW: 1986
SWING OVER BED WAYS ................... 36.5
SWING OVER CROSS SLIDE ................ 25
SWING IN GAP .......................... 49
DISTANCE BETWEEN CENTERS .............. 120"
SPINDLE SPEEDS (21) ................... 9 TO 900 RPM
WORKPIECE WEIGHT BETWEEN CENTERS ...... 13,000 LBS
WORKPIECE WEIGHT WITH STEADY REST ..... 16,500 LBS
SPINDLE HOLE, SPINDLE NOSE ............ 3-3/4" A1-11
THREADS (56) .......................... 1/4" TO 30 TPI
METRIC PITCHES (62) ................... 1 TO 120 MM/REV.
FEEDS (70) - LONGITUDINAL ............. .0043 TO .500 /REV.
FEEDS (CROSS OF LONGITUDINAL)
CENTERS - HEAD & TAILSTOCK ............ #6 MT
TAILSTOCK QUILL DIAMETER .............. 5-1/8"
QUILL TRAVEL .......................... 11.7
WIDTHS OF BED ......................... 23
APPROX WEIGHT ......................... 17,500 LBS.
* HEIDENHAIN TWO AXIS DIGITAL READOUT
* HARDENED & GROUND BEDWAYS, SOLID TRIPLE V BED
INSPECT UNDER POWER IN A NORTH AMERICAN WAREHOUSE
Call Rick at (***) 873-6224 ext 7560
