New jet 16-32 plus drum sander 629004K

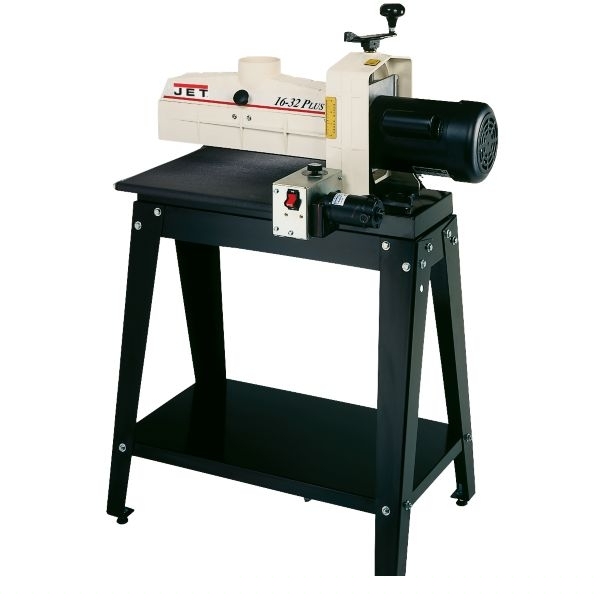

JET 16-32 Plus, 16-32 Plus Drum Sander
* Precision-flattened reinforced steel conveyor bed and no-give power feed belt provide a constant smooth sanding action for better results
* Top-position hand wheel adjusts height at 1/16" per turn for precise sanding thickness control
* Continuous-duty, 1-1/2 HP motor is designed for heavier use for longer periods of time
* Two motors: one feeds, while the other drives for superior sanding control
Drum Speed 1,725 RPM Maximum Sanding Thickness 3" Conveyor Motor Direct Drive 43 in.-lbs. of Torque Conveyor Variable Feed Rate 0 - 10 FPM Drum Dimensions 5-in x 16-in Minimum Sanding Length 2-1/4-in Minimum Sanding Thickness 1/32-in Maximum Sanding Width 32-in (2 passes) Dust Port Diameter 4-in Overall Dimensions 18-in x 23-in x 32-in Motor 1-1/2 HP, 1 Ph 115V Weight 164 lbs.
* 16-32 Plus Drum Sander - 629004K
* (1) Box of Ready to Wrap , Abrasives
