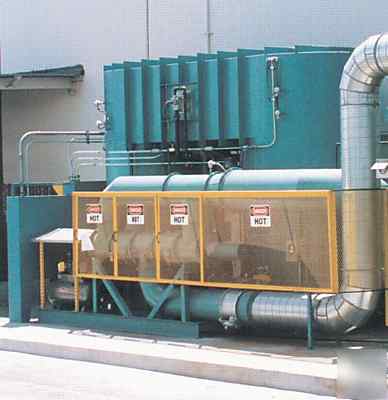

Tellkamp regenerative thermal oxidizer system rto
Footprint: 25' - 0" long x 11' - 3" wide x 12' - 0" high
Weight : 31,400 pounds (including the ceramic heat exchange media)
Horsepower: 40 Horsepower Induced Draft Fan
Connected Electrical Requirements: 90 amps @ 460/3/60
Running Electrical Requirements: 45 amps @ 460/3/60
Natural Gas: 0.50 MMBtu @ 5 psig maximum during VOC destruction mode of operation
Natural Gas: 2.0 MMBtu @ 5 psig connected load
