Moxa eds-508-mm-sc managed ethernet switch

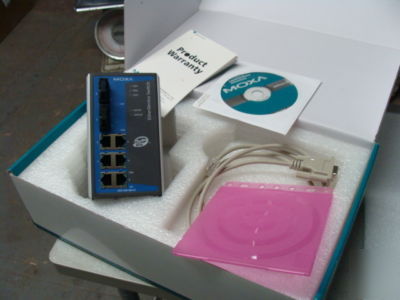

Moxa EDS-508-MM-SC Managed Ethernet Switch
The MOXA EtherDevice Switch EDS-508 Series consists of 8-port Ethernet Switches designed especially for industrial applications. With their high performance switching engine, redundant Ethernet ring capability, and dynamic status report ability, you can be confident that your industrial automation system will keep running continuously.
EDS-508 Series' useful device management and network management functions make it easy for you to master your automation Ethernet network, and the rugged hardware design makes these products suitable for use in demanding industrial environments.
Moreover, the easy web browser and Windows utility configuration options ensure quick and accurate installation.
Advanced Industrial Networking Capability
* Redundant Fast Ethernet Ring Capability (recovery time < 300 ms at full load)
* IGMP Snooping for filtering multicast traffic from industrial Ethernet Protocols
* Supports IEEE 802.1Q VLAN and GVRP protocol to ease network planning
* Supports QoS-IEEE 802.1p/1Q and TOS/DiffServ to increase determinism
* Port Trunking for optimum bandwidth utilization
* SNMP V1/V2c/V3 for different levels of network management security
* Supports SSL to enhance network security
Designed for Industrial Applications
* Bandwidth management prevents unpredictable network status
* Lock port for authorized only MAC address access
* Port mirroring for online debugging
* Automatic warning by exception through email, relay output
* Digital inputs to integrate sensors and alarms with IP networks
* Automatic recovery of connected device's IP addresses
* Line-swap fast recovery (Patented)
* Redundant, dual DC power inputs
* -40 to 75 C operating temperature range
* IP 30, rugged high-strength case
* Long-haul transmit distance of 40 km or 80 km
* DIN-Rail or panel mounting ability
* Configurable by Web browser, Telnet/Serial console, Windows utility
* Send ping commands to identify network segment integrity
Recommended Software and Accessories
* DR-4524, DR-75-24, DR-120-24 DIN-Rail 24 VDC Power Supply Series
