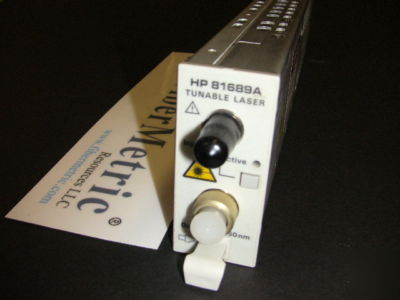

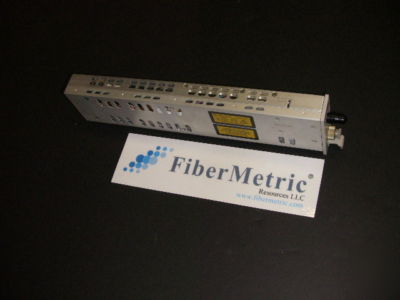

> Agilent/hp 81689A #021 compact tunable laser module
Agilent/hp 81689A #021 compact tunable laser module
* Wavelength Range: 1525 to 1575 nm
* Wavelength Resolution: 0.1 pm, 1.25 GHz @ 1550 nm
* Absolute Wavelength Accuracy (2): 0.3 nm typical
* Relative Wavelength Accuracy (2): 0.3 nm
* Wavelength Repeatability (2): 0.05 nm
* Wavelength Stability (2): < 0.02 nm (typical, 24 hrs constant temp)
* Tuning Speed: <10 sec/50 nm typical
* Linewidth (3): 20 MHz typical
* Output Power: 6 dBm (continuous during tuning)
* Minimum Output Power: -3 dBm
* Power Stability (9): 0.03 dB (1 hour), 0.06 dB (24 hrs) typical
* Power Repeatability (9): 0.02 dB typical
* Power Linearity: 0.1 dB typical
* Power Flatness vs. Wavelength: 0.3 dB
* Side-Mode Suppression Ratio (5): >40 dBc (1525 to 1575 nm at 0 dBm)
* Signal-to-Source SSE Ratio (6): 39 dB/nm (1525 to 1575 nm at 6 dBm)
