Thermo r&p outdoor enclosure for teom® series 1400A

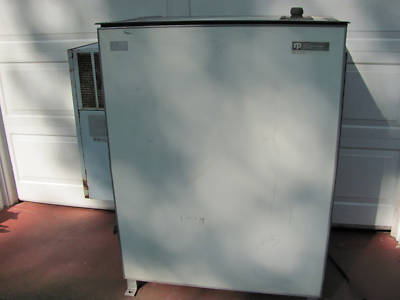

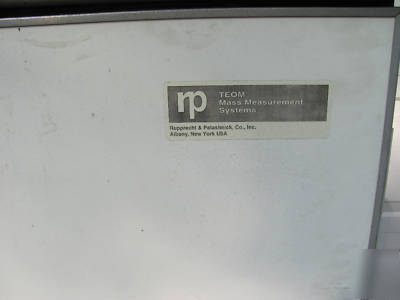

R&P (now THERMO) COMPLETE OUTDOOR ENCLOSURE FOR TEOM SERIES 1400A
The optional Complete Outdoor Enclosure from Thermo Electron Corporation provides full weatherprotection for the TEOM Series 1400a Ambient Particulate Monitor. It is used in instances in which protection against the weather cannot be provided for the instrument. The enclosure is equipped with a combination heating and air conditioning unit enabling the instrument to withstand the extremes of climate. It is designed to house the Series 1400a Sensor Unit, Control Unit, and sample pump. The structure is designed for straightforward retrofit with the Sample Equilibration System (SES) or Filter Dynamics Measurement System (FDMS) Module enclosure options. There is also room in its 19-inch rack for additional hardware. Sample tube seal collars are available for the 1-1/4 inch flow splitter in PM-10, PM-2.5 and TSP systems, as well as the 1/2 inch diameter sample tubing used in other applications.
* Corrosion-free painted aluminum exterior
* Locking door latches and door stop

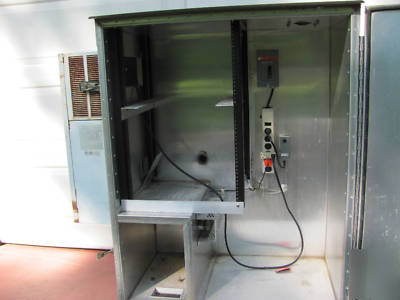

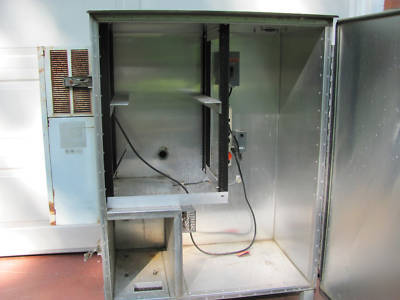

* Space for control unit, sensor unit, sample pump (with vibration-free mounting), and optional rack-mountedhardware
* Sliding shelf option for control unit
* Sample tube seal collar (1-1/4 or 1/2 inch diameter)

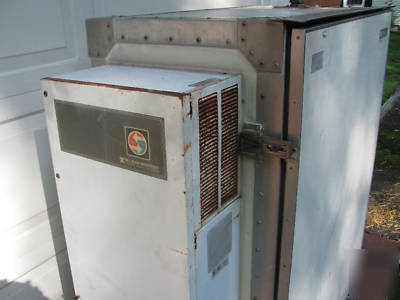

* Air conditioner/heater combination unit: 2000 BTU/hr, 500W heater
* Power requirements (including instrument,pump and AC/ Heater): 20 A @ 120 VAC, 10 A @ 240 VAC (specify voltage)
* 6-Way outlet strips with power surge protectors
* Exterior dimensions: 54" (137 cm) H x 49" (124.5 cm) W x 26" (66 cm) D
* Rack-mount dimensions: 19" (48 cm) W x 19" (48 cm) D x 25" (63.5 cm) H, 1.5" (3.8 cm) front clearance
* Anchor holes: D: 24.5" (62 cm) x W: 37.5" (95 cm)
