New digital vibration meter for v,a,d,f&rpm w/ software

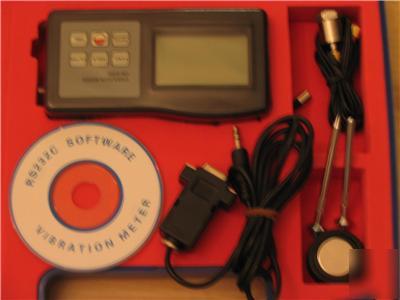

New Digital Vibration Meter for V,A,D,F&RPM w/ Software
For Velocity, Acceleration, Displacement and RPM with Software
THIS BRAND NEW 6360 PORTABLE DIGITAL VIBRATION METER IS SPECIALLY DESIGNED FOR EASY ON SITE OVERALL VIBRATION LEVEL MEASUREMENT FOR ROTATING AND RECIPROCATING MACHINE AND PARTS FOR QUALITY CONTROL AND PREVENTATIVE MAINTENANCE IN PLANTS, MACHINE SHOP, AUTO SHOP AND OTHER INDUSTRIAL FIELDS. IT TESTS THE ACCELERATION, VELOCITY AND DISPLACEMENT TO DETECT OUT-OF-BALANCE, MISALIGNMENT AND OTHER MECHANICAL FAULT TO PERFORM FAILURE ANALYSIS IN ACCORDANCE WITH ISO 2954 STANDARD.
* 18MM LCD 4-DIGIT DISPLAY WITH UNITS AND BATTERY SYMBOL
* PIEZOELECTRIC ACCELEROMETER TRANSDUCER FOR ACCURATE & REPEATABLE MEASUREMENT
* BEARING CONDITION MONITORING FUNCTION
* VELOCITY (10Hz-1KHz: 0.01-40 CM/S TRUE RMS 0.004-16INCH/S
* ACCELERATION (10Hz-1KHz; 10Hz-10KHz): 0.1-400M/S2 0.3-1312FT/S2
* DISPLACEMENT (10Hz-1KHz): 0.001-4.0MM 0.04-160MIL
* METRIC/IMPERIAL CONVERSION
* POWER SUPPLY: 4X1.5V AAA (UM-3) BATTERY
* OUTPUT: AC 2.0v PEAK FULL VALUE (LOAD RESISTANCE 10K)
* AC OUTPUT SOCKET FOR HEADPHONES (OPTIONAL AS STETHOSCOPE) AND RECORDING
* PC RS232 INTERFACE (CABLE & SOFTWARE ARE INCLUDED)
* OPERATING CONDITIONS:0-50C 32-122 F (TEMPERATURE)
* DIMENSION: 124X62X30MM/4.9X2.4X1.2IN.
* WEIGHT: 120G/0.27LB. (WITHOUT BATTERY)
SOFTWARE CD For display, export and print all the data
